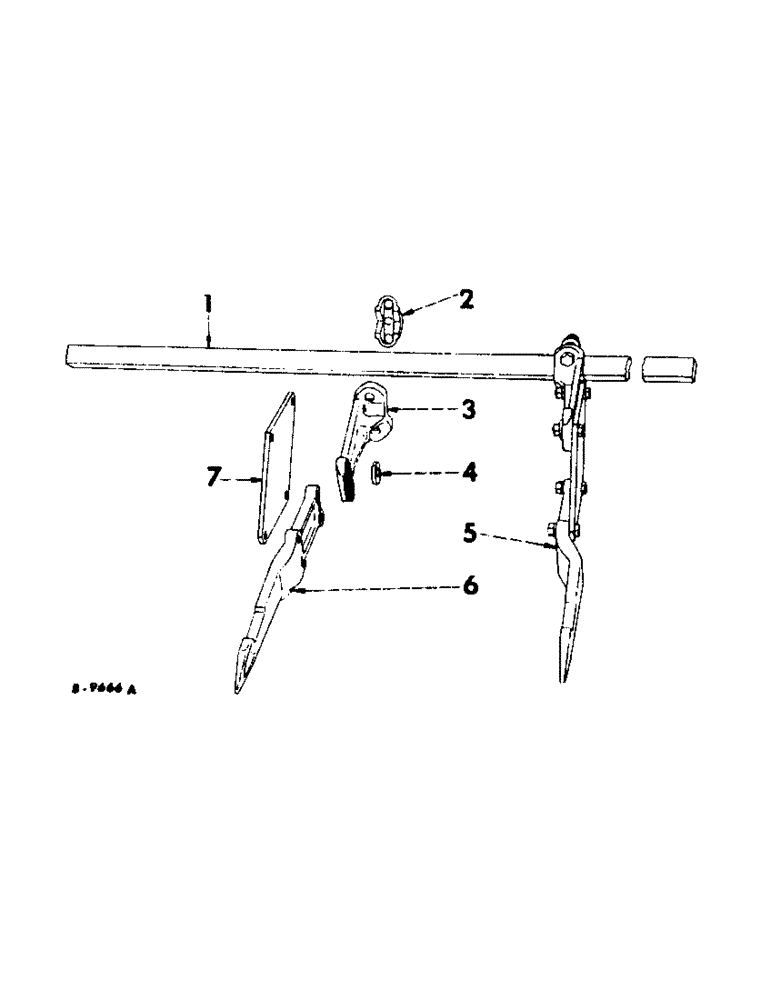

Запчасти Case IH INTERNATIONAL (A-40) - REAR SECTIONS, TOOL BAR AND COUPLING BEAMS

1

519400R1

TOOL BAR, 2-1/4 in. solid sq lgth 95 in, special

1шт.

1

523926R91

TOOL BAR, 2-1/4 in. sq lgth 95 in.

1шт.

2

523962R2

CLAMP

CAP, coupling beam

1шт.

3

521087R2

BRACKET

coupling beam attaching

1шт.

4

521084R2

WASHER

serrated

1шт.

5

523587R1

BEAM, left coupling, for 2-1/2 in. fast-hitch sockets

1шт.

5

521085R1

BEAM, left coupling, for 3 in. fast hitch sockets

1шт.

6

523588R1

BEAM, right coupling, for 2-1/2 in. fast-hitch sockets

1шт.

6

521086R1

BEAM, right coupling, for 3 in. fast hitch sockets

1шт.

7

523924R1

EXTENSION, coupling beam

1шт.

18840R1

BOLT

3/4 x 2-3/4 type 1

3шт.

18613R1

BOLT,Hex, 3/4"-10 x 3 1/4", G2

3/4 x 3-1/4 type 1

3шт.

280954

NUT,3/4"-10, G5

3шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.
