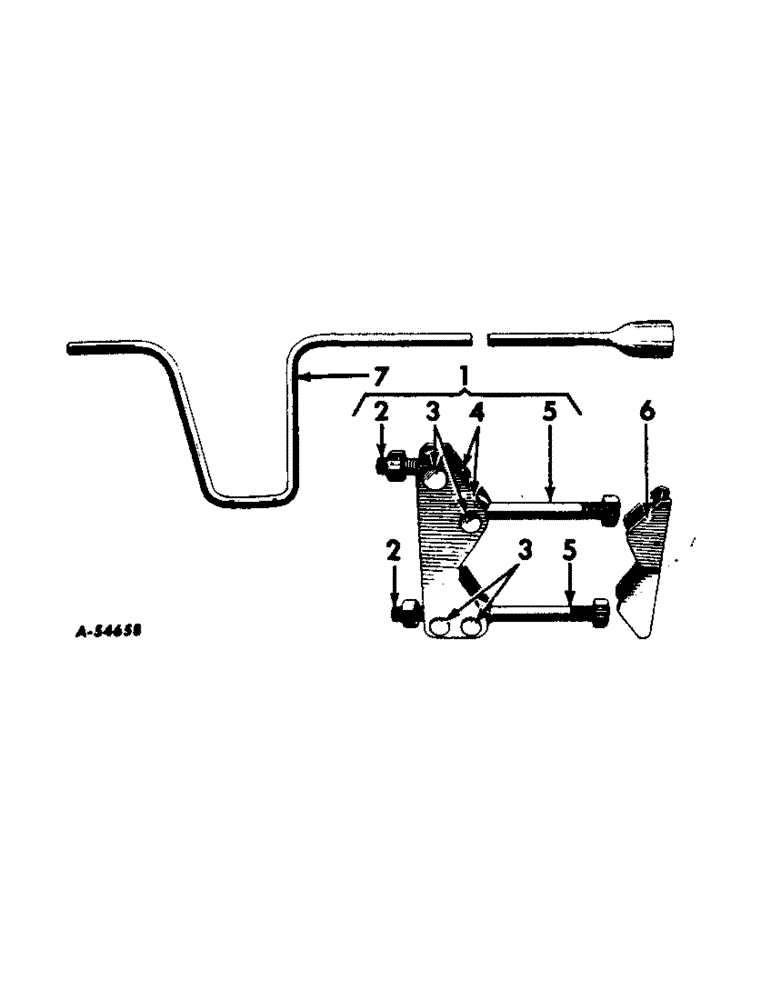

Запчасти Case IH INTERNATIONAL (A-36[A]) - REAR SECTIONS, REAR AXLE ATTACHING CLAMP AND WRENCH

1

516219R91

PLATE ASSEMBLY, rear axle attaching

1шт.

28508B

NUT, 3/4 in.

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

575813R1

WASHER

25/32 x 1-1/4 in. x 11 ga

1шт.

2

PO20251

BOLT

EYEBOLT, attaching plate

1шт.

28508B

NUT, 3/4 in.

1шт.

3

515391R2

STUD, eyebolt pivot

1шт.

4

516217R1

PLATE, attaching

1шт.

5

515390R1

EYEBOLT, attaching clamp

1шт.

28508B

NUT, 3/4 in.

1шт.

515391R2

STUD, eyebolt pivot

1шт.

6

515393R1

CLAMP, attaching

1шт.

7

30011DA

WRENCH, quick-attaching

1шт.
