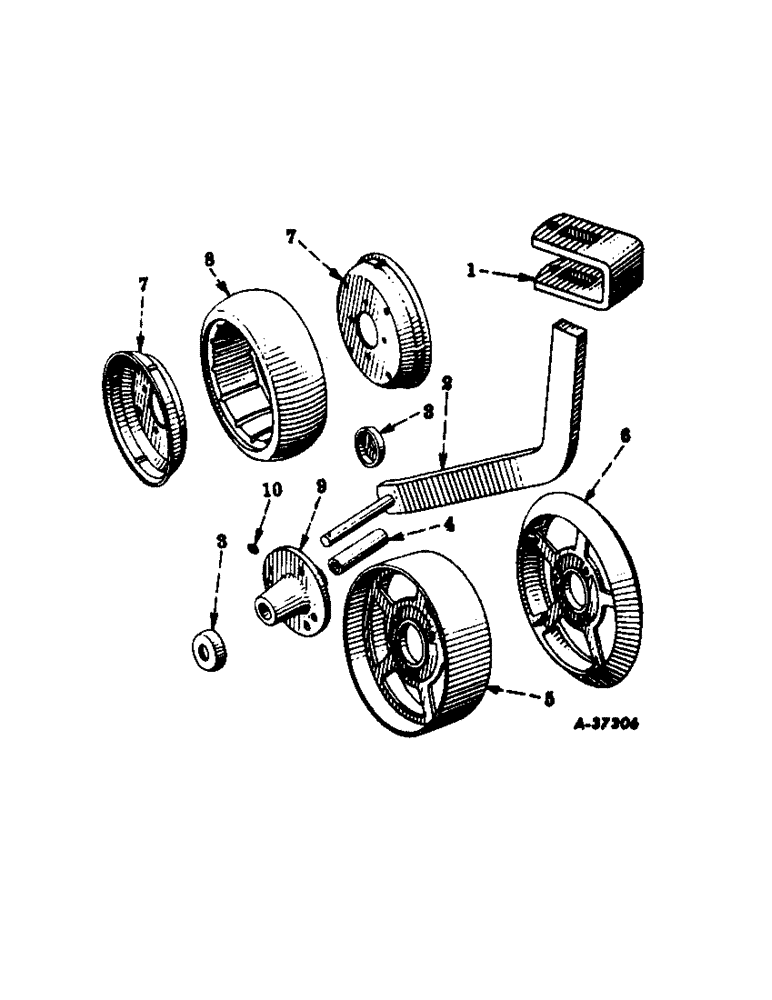

Запчасти Case IH INTERNATIONAL (A-35) - REAR SECTIONS, GAUGE WHEELS

1

519221R11

CLAMP W/SET SCREW, standard

1шт.

18801R1

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2

7/16 x 2-3/4 type 1

1шт.

137660

KNIFE SECTION

SCREW, 3/4 x 1-1/2 in. cup-pt sq-hd set

1шт.

520702R11

STANDARD

1шт.

427636

SLOTTED NUT,3/4"-10, G5

NUT, 3/4 in. slotted

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

Q3480

WASHER

1.031 x 1.500 x .105 pln

2шт.

3

522371R1

WASHER

COLLAR, sand

1шт.

4

519893R1

BUSHING

axle

1шт.

5

1750B

WHEEL, flat tire

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 in. mach

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

6

1688B

WHEEL, V-tire

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16 x 1-1/2 in. mach

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

7

516491R2

RIM

wheel, zero-pressure tire

2шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 in. C-Z pltd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 in. C-Z pltd mach

4шт.

120376

NUT,5/16"-18, G5

8шт.

134238R1

WASHER

11/32 x 1 in. x 16 ga

1шт.

8

516492R1

TYRE/TIRE

TIRE, zero-pressure, 4.00 x 12 in.

1шт.

9

519029R21

HUB

W/FITTING

1шт.

10

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 in. drive type straight lubrication

1шт.
