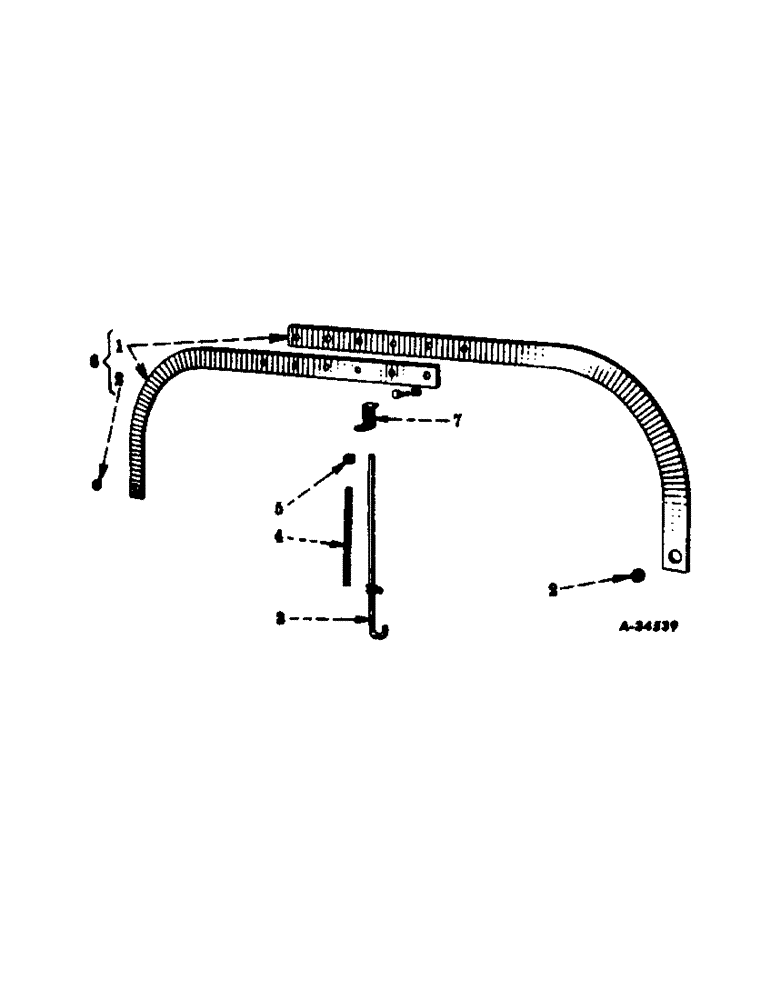

Запчасти Case IH INTERNATIONAL (A-35[A]) - REAR SECTIONS, REAR SECTION JOCKEY ARCH FOR DELAYED POWER LIFT

1

518291R1

ARCH, rear jockey

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 type 1

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

27343R1

WASHER, .562 x 1.375 x .086

1шт.

2

513974R1

BUSHING

jockey arch

1шт.

3

PO24631

ROD, center pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

4

2724BA

SPRING

center pressure rod, 1-1/32 in. OD, 11-3/8 in. long, 34 coils

1шт.

5

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

6

ARCH ASSEMBLY, rear jockey, machine attachment

1шт.

7

28676B

BRACKET, center pressure rod upper

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
