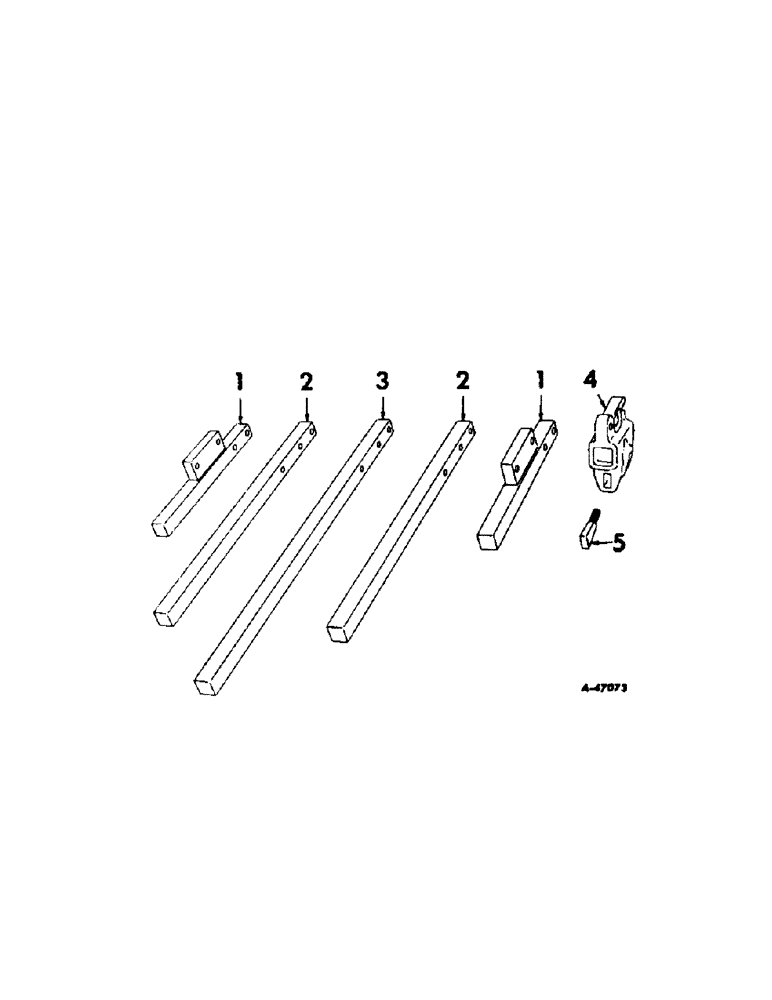

Запчасти Case IH INTERNATIONAL (A-04[A]) - REAR SECTIONS, TOOL BAR

1

523458R11

TOOL BAR, outside

1шт.

2

523459R1

TOOL BAR, outer

1шт.

3

522565R1

TOOL BAR, center

1шт.

4

522558R1

CLAMP, tool bar attaching

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 in. C-Z mach

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 in. C-Z mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

5

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
