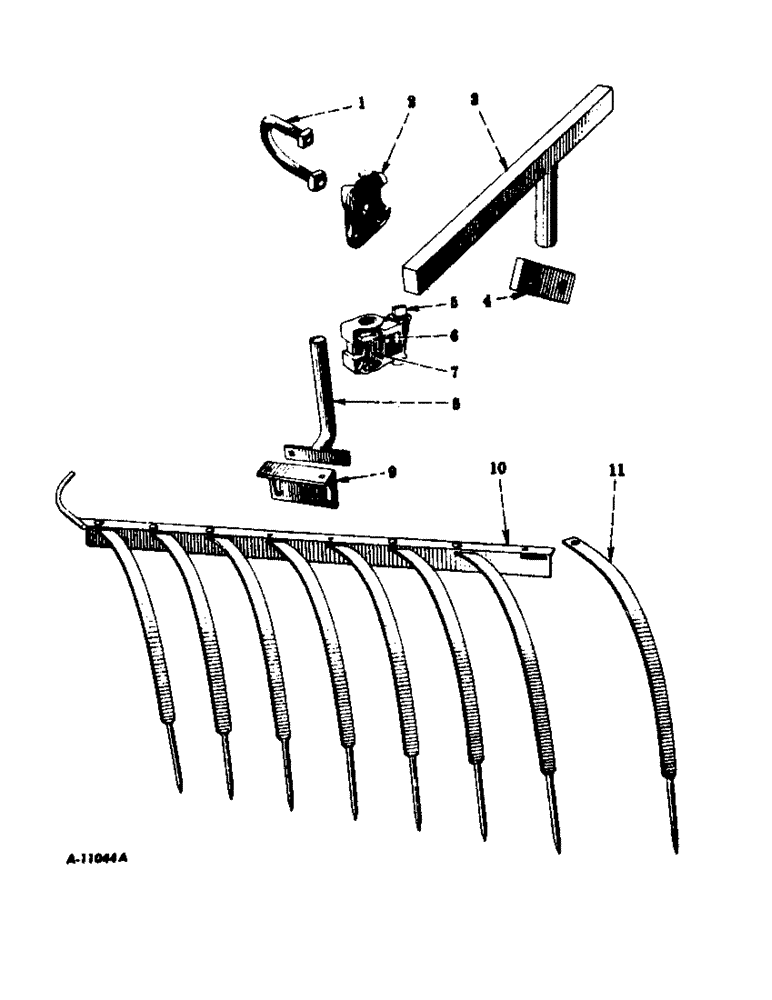

Запчасти Case IH INTERNATIONAL (A-34) - REAR SECTIONS, WEEDER MULCHER, FOUR SECTION

1

29515BX

BOLT

U-BOLT W/NUTS, center standard

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

2

1844BA

CLAMP

standard center

1шт.

3

30798B

TOOL BAR, center

1шт.

4

29269BA

STRAP

u-bolt

1шт.

5

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

clamp long wedge

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

27584B

KEY,Wedge, 1/2" - 13 x 2 13/16", Sht

BOLT, clamp short wedge

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

1792BA

CLAMP, standard tool bar

1шт.

8

510734R91

STANDARD, weeder

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

2шт.

W6652

WASHER

15/32 x 1 in. x 16 ga

2шт.

9

510697R1

PLATE, frame attaching

1шт.

10

30805B

FRAME, weeder left center

1шт.

10

30806B

FRAME, weeder right center

1шт.

10

30809B

FRAME, weeder left outside

1шт.

10

30810B

FRAME, weeder right outside

1шт.

11

16448B

SPRING

TOOTH, weeder

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8 x 3/4 crg type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
