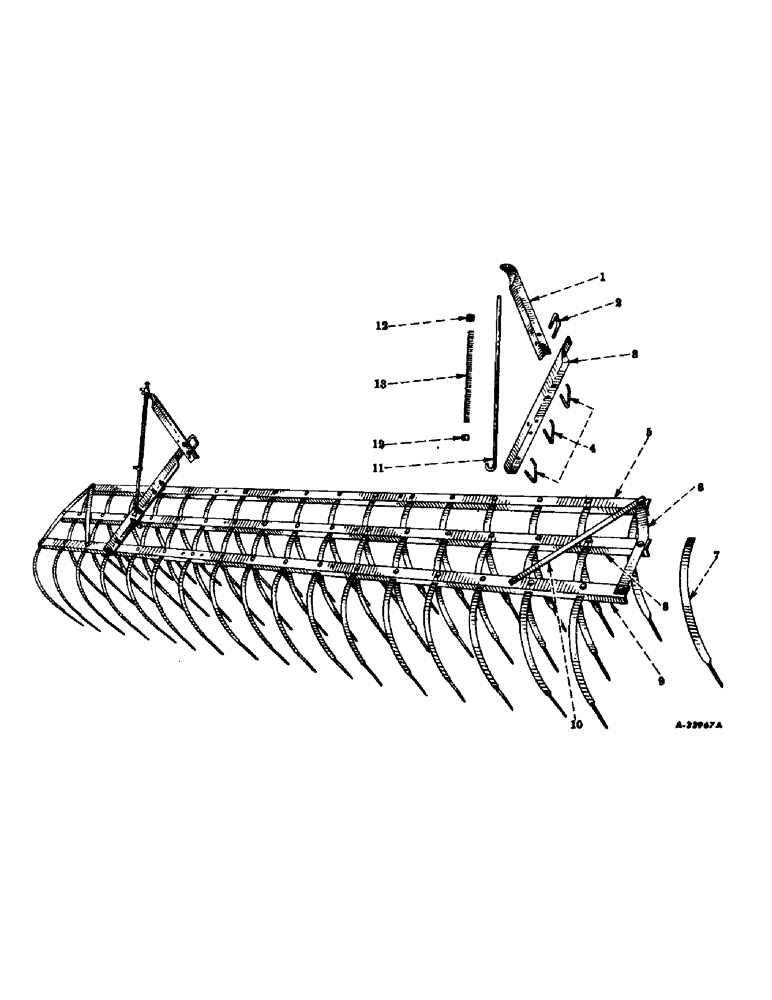

Запчасти Case IH INTERNATIONAL (A-33) - REAR SECTIONS, WEEDER MULCHER, ONE SECTION

1

519455R1

ANGLE, hitch

1шт.

2

27651B

BOLT,1/2" - 13 x 2.56"

U-BOLT, hitch support

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

3

519454R1

ANGLE, hitch support

1шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4 crg type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

21331R1

WASHER

.469 x 1.250 x .054

1шт.

4

PO27695AX

U-BOLT W/NUT, hitch angle

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

PO27685

ANGLE, front, for 7-1/2 ft frame

1шт.

5

PO28676

ANGLE, front, for 10 ft frame

1шт.

6

PO27684

BRACE, frame angle

1шт.

21860R1

BOLT, 3/8 x 7/8 crg type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

16448B

SPRING

TOOTH, weeder

1шт.

21860R1

BOLT, 3/8 x 7/8 crg type 1

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

PO27686

ANGLE, center, for 7-1/2 ft frame

1шт.

8

PO28677

ANGLE, center, for 10 ft frame

1шт.

PO27687

ANGLE, rear, for 7-1/2 ft frame

1шт.

PO27687

ANGLE, rear, for 10 ft frame

1шт.

10

PO28675

BRACE, diagonal

1шт.

11

29276B

ROD

pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

12

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

13

PO172

SPRING

pressure rod, 5/16 in. OD, 12-5/8 in. long, 42 coils

1шт.
