(A-32[A]) - REAR SECTIONS, GANG ARCH FOR DELAYED POWER LIFT

Запчасти Case IH INTERNATIONAL (A-32[A]) - REAR SECTIONS, GANG ARCH FOR DELAYED POWER LIFT

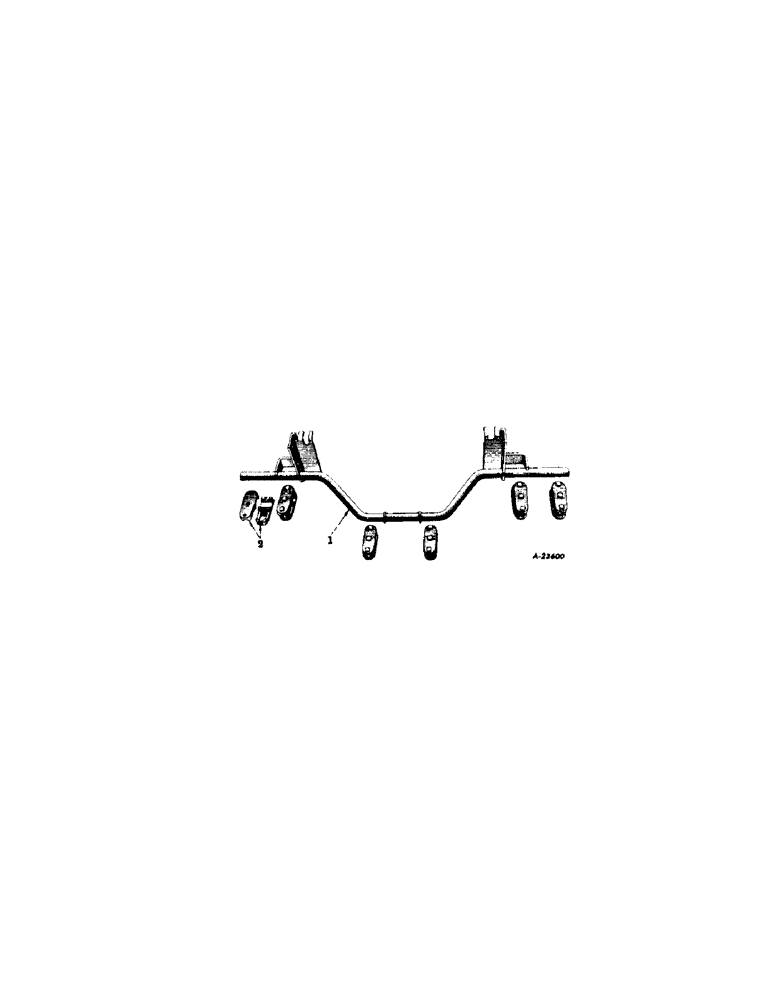

Схема запчастей Case IH INTERNATIONAL - (A-32[A]) - REAR SECTIONS, GANG ARCH FOR DELAYED POWER LIFT
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

518340R93

ARCH, gang

1шт.

2

516021R3

BEARING, gang beam

1шт.

18800R1

BOLT, 7/16 x 2-1/2 type 1

1шт.

18802R1

SCREW,Hex, 7/16"-14 x 3", G8

BOLT, 7/16 x 3 type 1

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.
