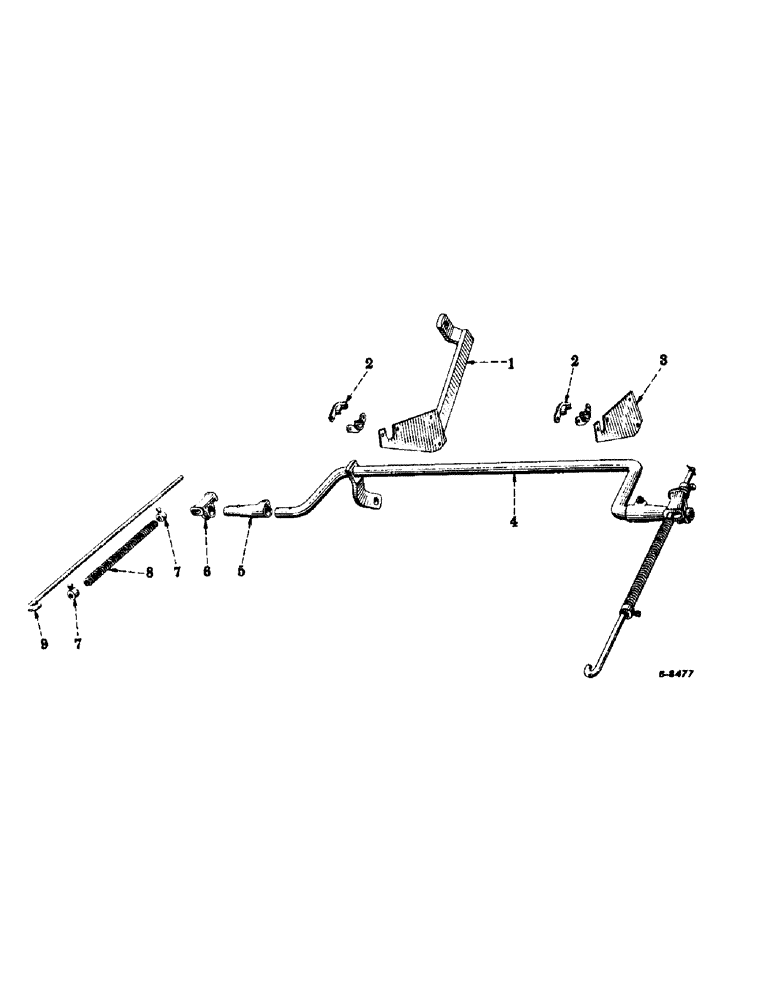

Запчасти Case IH INTERNATIONAL (A-31) - REAR SECTIONS, ROCKSHAFT AND PRESSURE ROD, FOR DELAYED POWER LIFT

1

519589R91

PLATE, cylinder support and rockshaft bearing

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

1шт.

15570R1

BOLT, 1/2 x 1-1/4 in. no. 3 plow

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

1837B

BEARING, rockshaft

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 type 1

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

3

519588R1

PLATE, rockshaft bearing right

1шт.

17452T1

BOLT, 1/2 x 1-1/4 type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

519583R11

ROCKSHAFT, rear

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

2шт.

557278R1

WASHER, 1-11/32 x 2 in. x 16 ga

4шт.

5

1859B

EXTENSION, rockshaft, for use with 36 to 42 in. row spacing, cultivator beams

1шт.

28618R1

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT, 7/16-14 x 2-1/4 crg znd type 5

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

6

1833

FITTING

SWIVEL, pressure rod left

1шт.

6

1834B

SWIVEL, pressure rod right

1шт.

7

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

8

PO172

SPRING

outside pressure rod, .947 OD. 12-5/8 in. long, 42 coils

1шт.

9

29945B

ROD, outside pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

21862R1

WASHER

.594 x 1.000 x .105

1шт.
