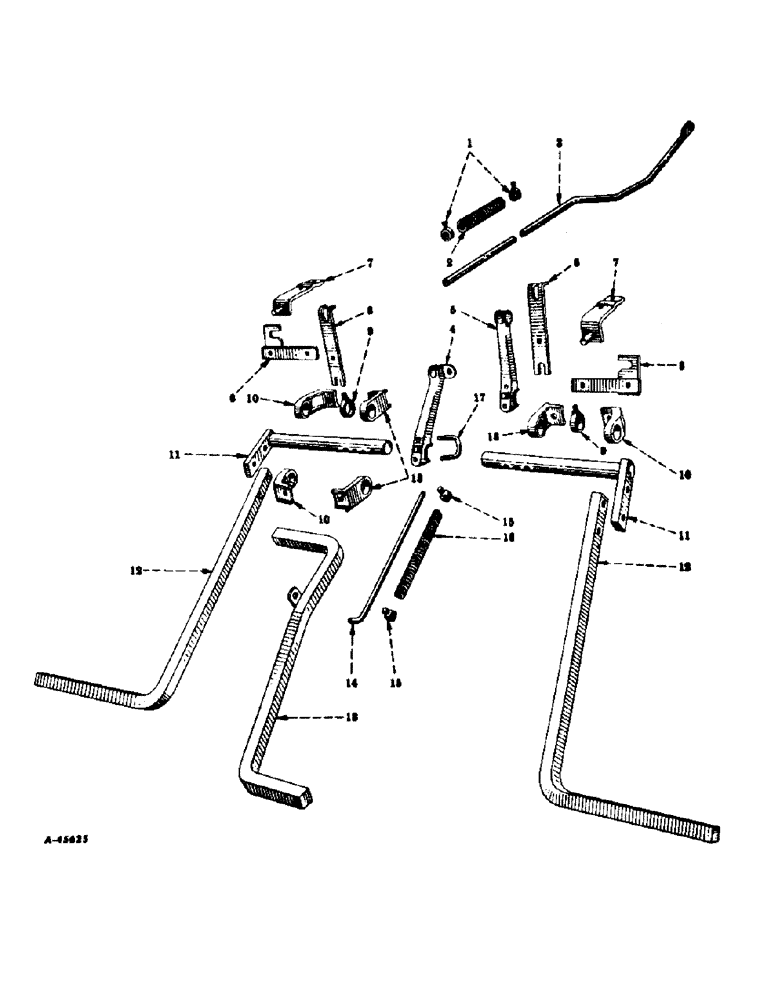

Запчасти Case IH INTERNATIONAL (A-27) - REAR SECTIONS, BEAMS, PRESSURE ROD AND LIFTING ARMS, 28 TO 42 IN. ROWS

1

PO2041X

COLLAR

W/SET SCREW, lift link set

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

2

SA2017

SPRING

lift link, 1-463 OD, 9-1/8 in. long, 20 coils

1шт.

3

522653R1

LINK, lift left

1шт.

3

522654R1

LINK, lift right

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

517843R1

COTTER PIN

PIN, quick-attachable cotter

2шт.

522650R1

PIN, 5/8 x 1-3/4 in. pt-hd

2шт.

520235R1

WASHER, 15/16 x 1-1/2 in. x 11 ga case-hardened

4шт.

4

519593R1

ARM, lift left

1шт.

5

519594R1

ARM, lift right

1шт.

6

519600R1

BRACKET, upper gang beam

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2 pln type 5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

7

519601R11

PLATE, left attaching

1шт.

7

519602R11

PLATE, right attaching

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 type 1

4шт.

28508B

NUT, 3/4 in. special

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

8

520283R91

BRACKET AND TIE BAR, left gang beam

1шт.

8

520284R91

BRACKET AND TIE BAR, right gang beam

1шт.

15615R1

SCREW,#3, 1/2" - 13 x 2", Gr 2

BOLT, 1/2 x 2 in. no. 3 plow

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

5641X

COLLAR, outer gang beamset

1шт.

85-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW, 1/2 x 3/4 in. cup-pt sq-hd set

1шт.

10

519592R1

BEARING, gang beam offset

1шт.

11

519606R91

ARM, gang beam attaching

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

12

519613R1

BEAM, left gang outside, 1-3/8 in. sq

1шт.

12

519614R1

BEAM, right gang outside, 1-3/8 in. sq

1шт.

13

519596R11

BEAM, center gang

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

519597R1

ROD, center pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

15

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

16

PO23

SPRING

pressure rod, 1.1/16 in. OD, 10 in. long, 30-1/2 coils

1шт.

17

520060R11

U-BOLT, lift arm

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

519591R1

BEARING, gang beam straight

1шт.
