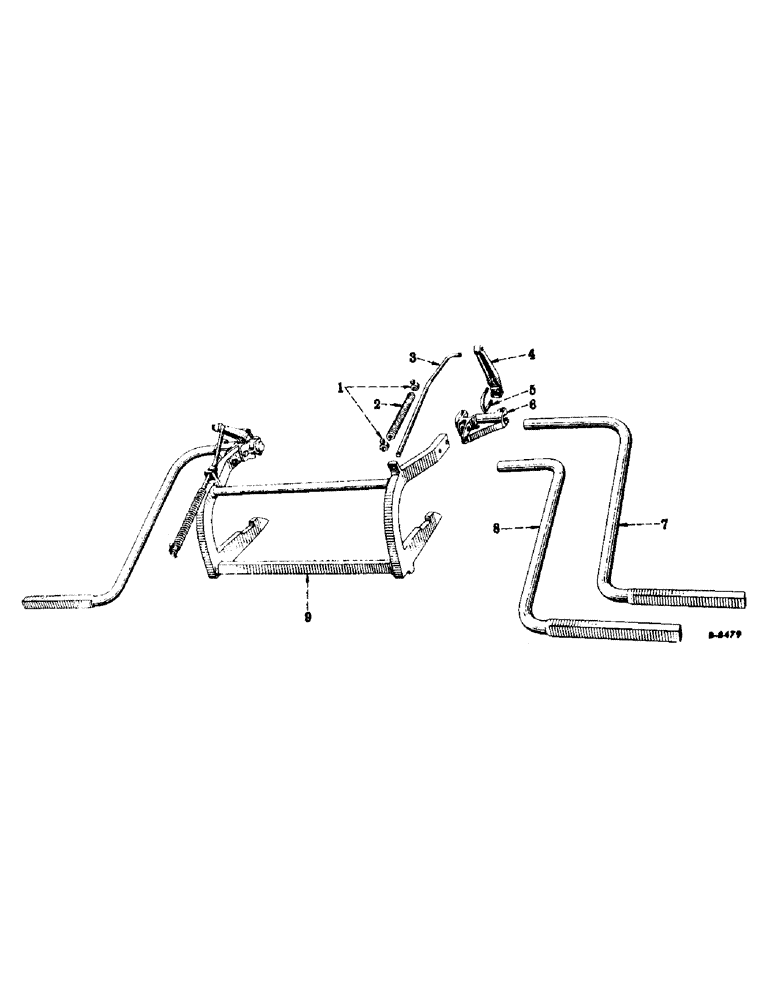

Запчасти Case IH INTERNATIONAL (A-26) - REAR SECTIONS, FRAME AND GANG BEAMS, INDEPENDENT GANG

1

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

2

PO23

SPRING

pressure rod, 1-1/16 in. OD, 10 in. long, 30-1/2 coils

1шт.

3

519370R1

ROD, pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

4

519199R2

ARM, pressure rod

1шт.

5

519204R21

U-BOLT W/NUTS, pressure rod arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

519197R2

BRACKET, left gang beam bearing

1шт.

6

519198R2

BRACKET, right gang beam bearing

1шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2 x 2-1/2 crg type 5

4шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

1/2 x 2-1/4 type 1

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

7

519367R91

BEAM, left gang outside, 1-3/8 in. sq. end, for 36 to 42 in. rows

1шт.

7

519368R91

BEAM, right gang outside, 1-3/8 in. sq. end, for 36 to 42 in. rows

1шт.

8

520897R91

BEAM, left gang outside, 1-3/8 in. sq. end, for 28 to 42 in. rows

1шт.

8

520898R91

BEAM, right gang outside, 1-3/8 in. sq. end, for 28 to 42 in. rows

1шт.

9

519376R91

FRAME, mounting assembly

1шт.
