(A-23) - REAR SECTIONS, JOCKEY ARCH, 36 TO 42 IN. ROWS

Запчасти Case IH INTERNATIONAL (A-23) - REAR SECTIONS, JOCKEY ARCH, 36 TO 42 IN. ROWS

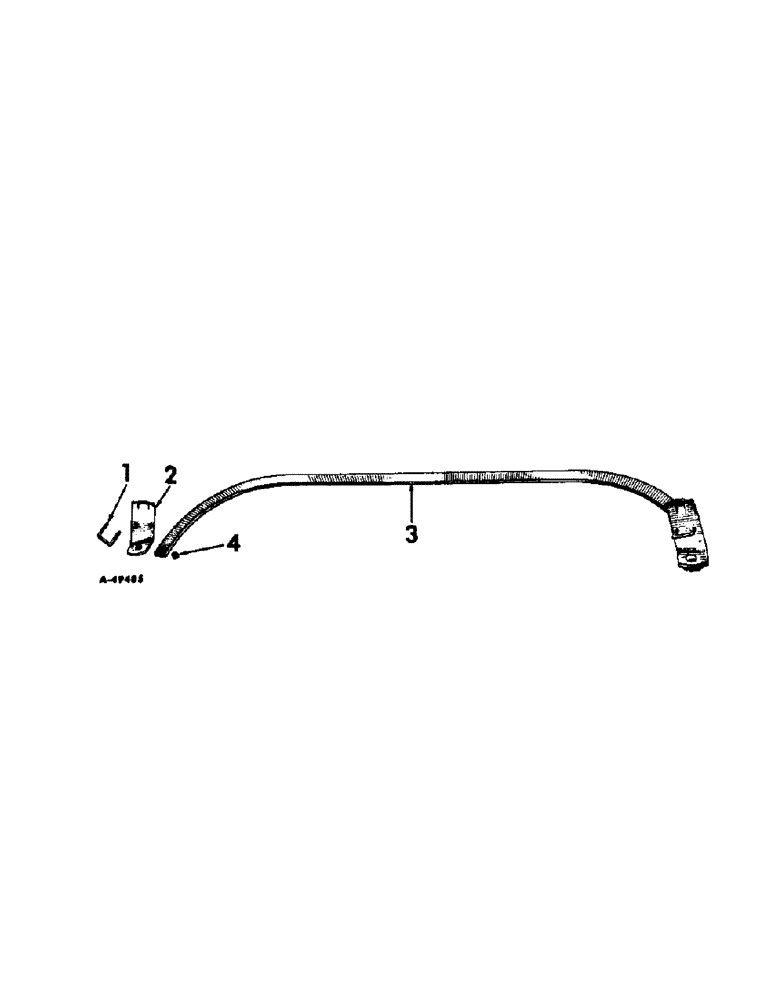

Схема запчастей Case IH INTERNATIONAL - (A-23) - REAR SECTIONS, JOCKEY ARCH, 36 TO 42 IN. ROWS
2
3
1
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PO17044A

BOLT

U-BOLT, bracket

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

524851R11

BRACKET, jockey arch left

1шт.

2

524852R11

BRACKET, jockey arch right

1шт.

3

524853R1

ARCH, jockey

1шт.

4

513974R1

BUSHING

jockey arch

1шт.
