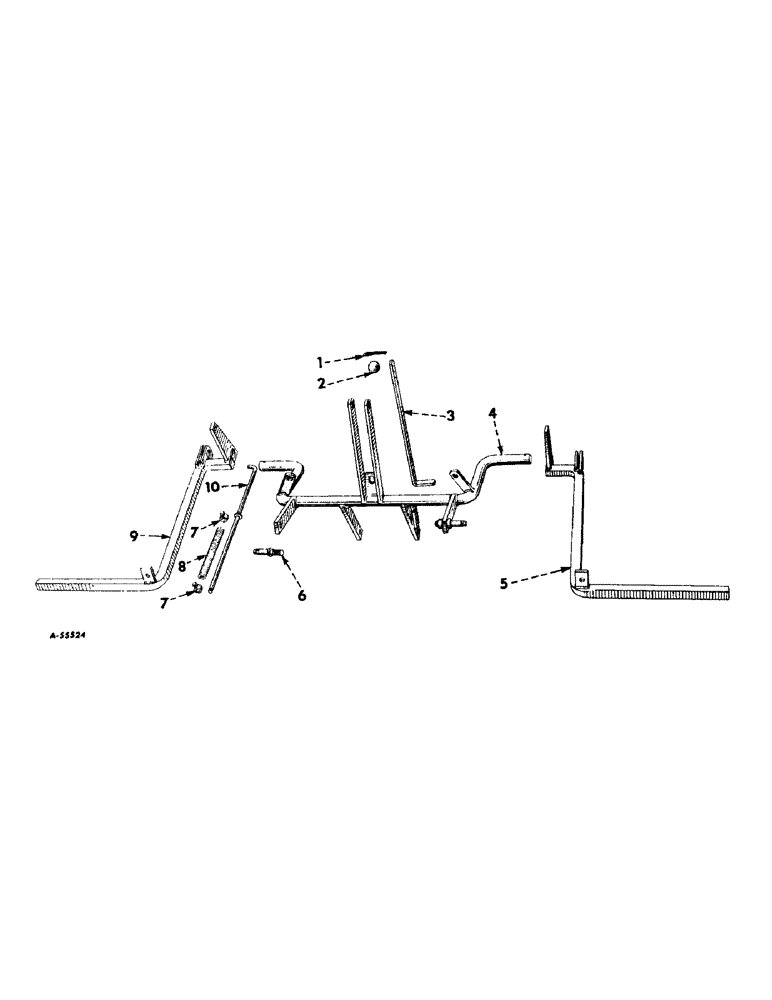

Запчасти Case IH INTERNATIONAL (A-20) - REAR SECTIONS, FRAME AND TOOL BAR, 28 TO 42 IN. ROWS

1

520175R1

CLIP

PIN, quick-attachable cotter, support stand

1шт.

2

372469R1

BALL

implement attaching

1шт.

519417R1

HEADED PIN,3/4" x 3 11/16"

PIN, 3/4 x 3-11/16 in. dld-std-hd

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

3

524849R1

STAND, support

1шт.

4

527037R91

FRAME, main

1шт.

5

524846R11

TOOL BAR, right outer, 28 to 42 in. rows

1шт.

6

525896R1

STUD

lower link

1шт.

426767

NUT,7/8"-14, G5

7/8UNF

1шт.

131047

WASHER,7/8"

7/8"

1шт.

7

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

8

PO23

SPRING

pressure rod

1шт.

9

524845R11

TOOL BAR, left outer, 28 to 42 in. rows

1шт.

10

524820R11

ROD, lift and pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.
