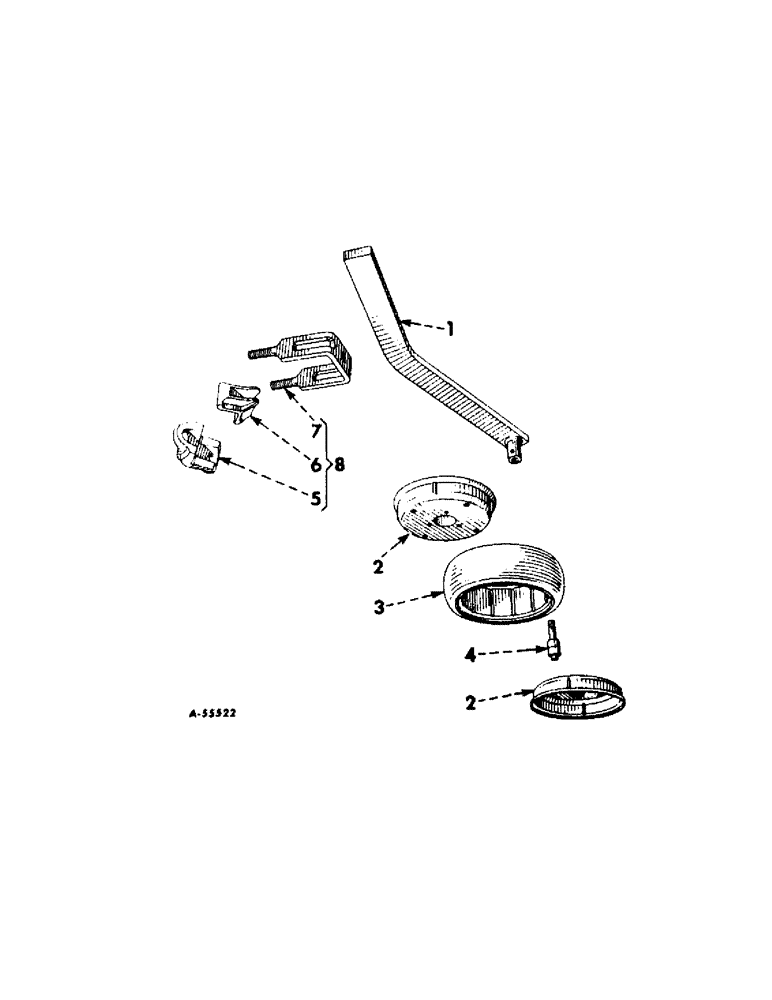

Запчасти Case IH INTERNATIONAL (A-18) - REAR SECTIONS, BALL BEARING GAUGE WHEEL

1

526780R91

STANDARD W/SLEEVE, left

1шт.

1

526781R91

STANDARD W/SLEEVE, right

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 znp f/pt hdl/hs set

2шт.

2

526768R1

WHEEL

RIM, gauge wheel

1шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16 x 5/8 in. C-Z pltd mach

7шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

3

516492R1

TYRE/TIRE

TIRE, zero-pressure, 4.00 x 12 in.

1шт.

4

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING ASSEMBLY, double row ball

1шт.

5

520777R1

CLAMP

CAP, u-bolt

1шт.

6

PO2988A

BLOCK, standard clamp

1шт.

7

518523R2

U-BOLT,U, 3/4" - 10 x 6"

standard

1шт.

280954

NUT,3/4"-10, G5

2шт.

8

518533R91

CLAMP ASSEMBLY, standard

1шт.
