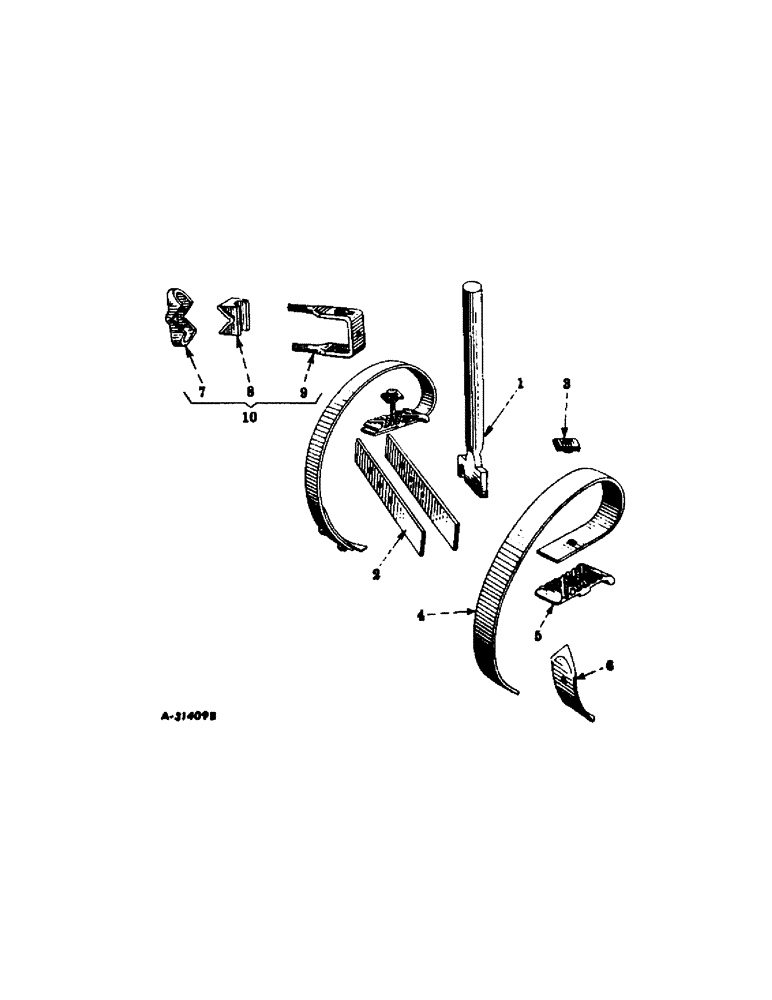

Запчасти Case IH INTERNATIONAL (A-18[A]) - REAR SECTIONS, SPRING TEETH

1

518029R11

STANDARD, 1-7/16 in. dia

1шт.

2

29883B

BAR, frame

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

WASHER, 1/2 in. lock

1шт.

102637

NUT,1/2"-13, G5

1шт.

3

1293B

CLAMP

spring tooth bracket

1шт.

4

28361B

SPRING

TOOTH, spring

1шт.

17649R1

BOLT, 7/16 x 3-1/4 in. mach

1шт.

NLS

NO LONGER SERVICED

7/16 in.

1шт.

5

1294B

BRACKET

spring tooth

1шт.

6

25332B

SHOVEL

double point

1шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 in. no. 3 plow

2шт.

102635

NUT,3/8"-16, G5

2шт.

7

518020R1

CLAMP

CAP, standard clamp

1шт.

8

518021R1

BLOCK

standard clamp

1шт.

9

518025R2

BOLT,U, 5/8" - 11 x 6"

U-BOLT, standard clamp

1шт.

102639

NUT,5/8"-11, G5

2шт.

10

518026R91

CLAMP

ASSY, standard

1шт.
