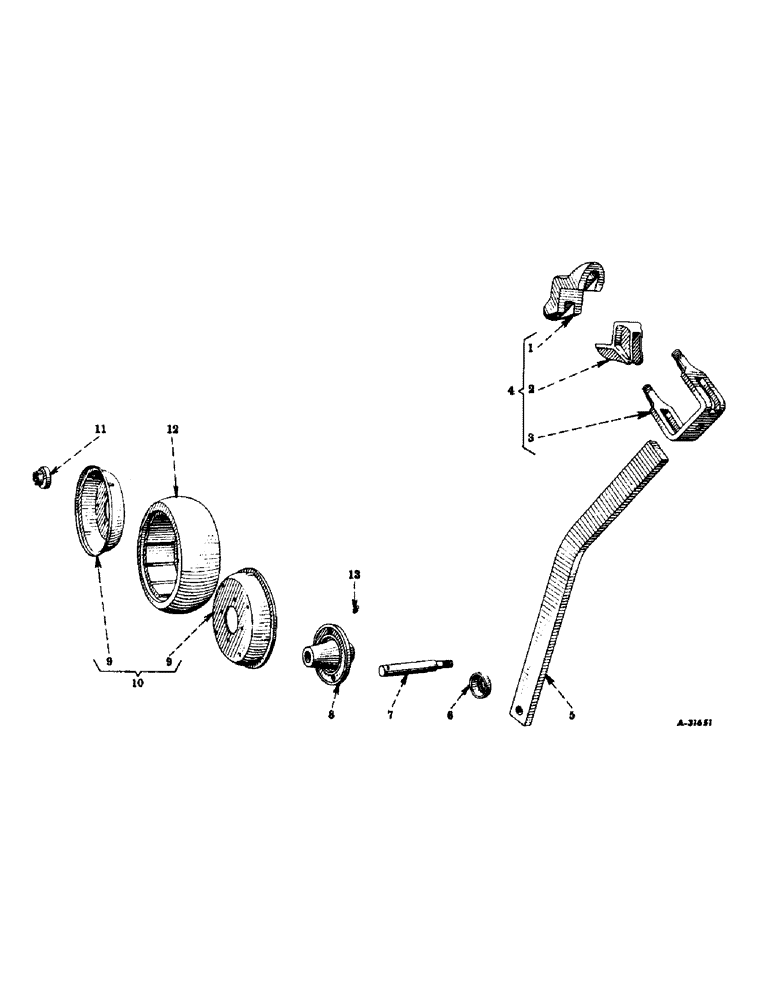

Запчасти Case IH INTERNATIONAL (A-17) - REAR SECTIONS

1

520777R1

CLAMP

CAP, u-bolt

1шт.

2

PO2988A

BLOCK, standard clamp

1шт.

3

518523R2

U-BOLT,U, 3/4" - 10 x 6"

1шт.

425-1012

NUT,3/4"-10, G5

3/4 in.

2шт.

4

518533R91

CLAMP ASSEMBLY, for 3/4 x 2 in. standard

1шт.

5

518524R1

STANDARD, 3/4 x 2 in.

1шт.

6

516569R1

WASHER

COLLAR, sand

1шт.

7

516566R11

AXLE W/NUT

1шт.

220081

NUT

3/4 in.

1шт.

20341R1

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

22440R1

WASHER

1.031 x 1.750 x .027

2шт.

8

516564R31

HUB

W/FITTING

1шт.

9

516491R2

RIM

half

1шт.

10

WHEEL ASSEMBLY, 517978R91, machine attachment

1шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 in. C-Z pltd mach

4шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 x 1 in. C-Z pltd mach

4шт.

120376

NUT,5/16"-18, G5

8шт.

134238R1

WASHER

.344 x 1.000 x .056

1шт.

11

516563R1

CAP

sand

1шт.

12

516492R1

TYRE/TIRE

TIRE, zero pressure, 4.00 x 12 in.

1шт.

13

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 hole less ball check lub

1шт.
