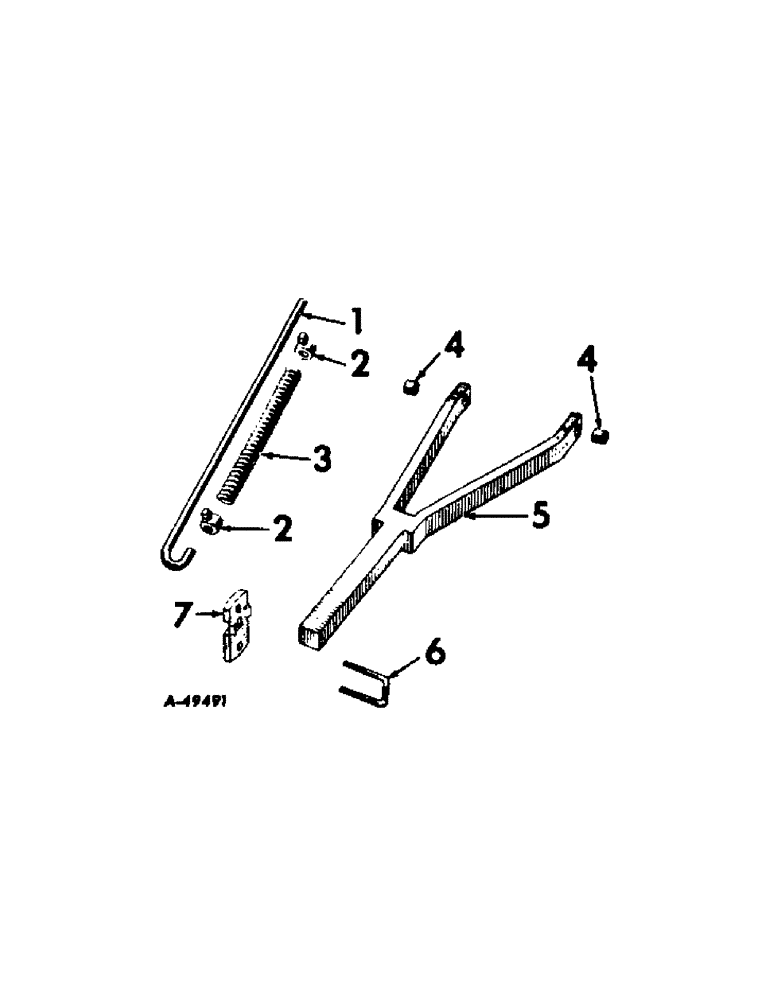

Запчасти Case IH INTERNATIONAL (A-13) - REAR SECTIONS, CENTER TOOL BAR

1

PO24631

ROD, center pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

12258R1

WASHER

21/32 x 1-1/4 in. x 11 ga

1шт.

2

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

3

PO23

SPRING

pressure

1шт.

4

524836R1

BUSHING, center tool bar

1шт.

5

524839R11

TOOL BAR, center

1шт.

17552R1

BOLT, 5/8 x 2 in. mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

12258R1

WASHER

21/32 x 1-1/4 in. x 11 ga

2шт.

102639

NUT,5/8"-11, G5

2шт.

6

PO17044A

BOLT

U-BOLT, center pressure rod bracket

1шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

27665BA

BRACKET

center pressure rod

1шт.
