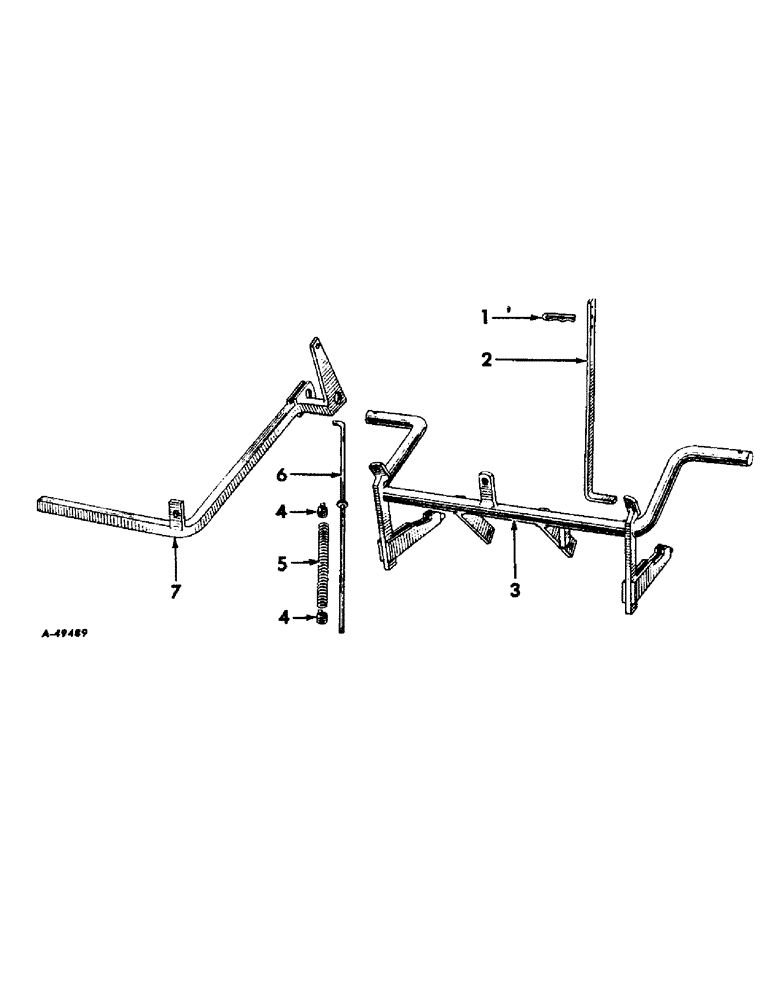

Запчасти Case IH INTERNATIONAL (A-12) - REAR SECTIONS, FRAME AND TOOL BAR, 28 TO 42 IN. ROWS

1

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

2

524849R1

STAND, support

1шт.

3

524824R91

FRAME, main, 28 to 42 in. rows, for 2-1/2 in. fast-hitch socket

1шт.

3

524826R91

FRAME, main, 28 to 42 in. rows, for 3 in. fast-hitch sockets

1шт.

4

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR W/SET SCREW, pressure rod

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2 x 5/8 in. cup-pt sq-hd set

1шт.

5

PO23

SPRING

pressure rod

1шт.

6

524820R11

ROD, lift and pressure

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

524845R11

TOOL BAR, left outer, 28 to 42 in. rows

1шт.

7

524846R11

TOOL BAR, right outer, 28 to 42 in. rows

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.
