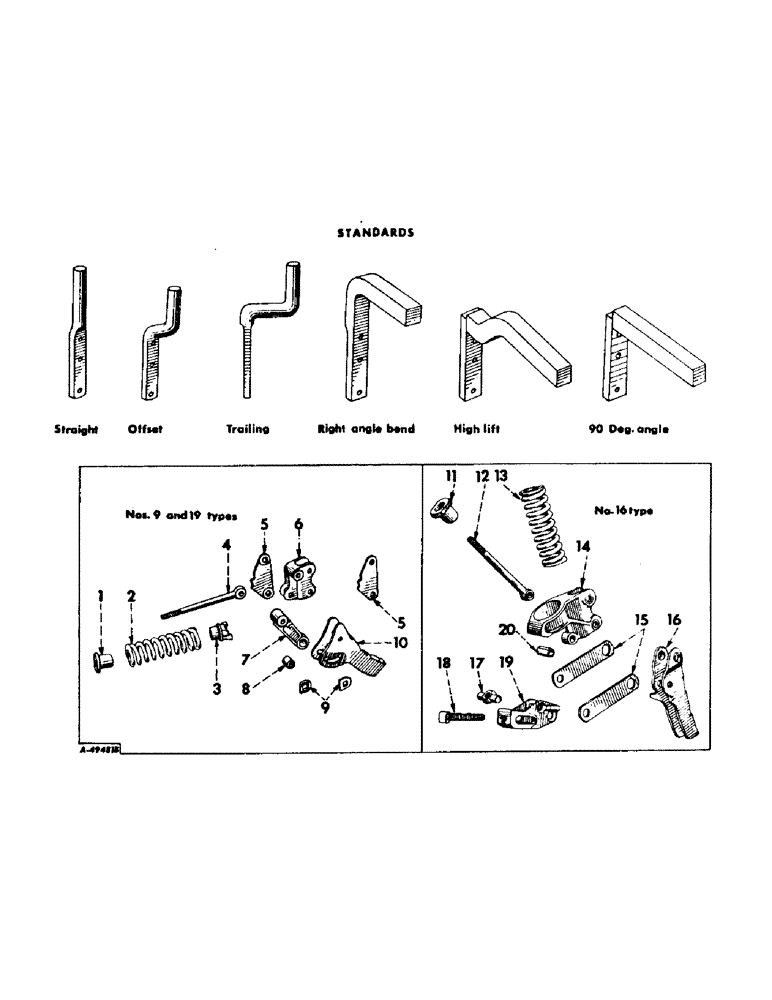

Запчасти Case IH INTERNATIONAL (YA-6) - SPRING TRIPS, NOS. 9, 16 AND 19 TYPES

1

5105BB

NUT

WASHER, spring

1шт.

2

15282BA

SPRING

1-11/16 in. OD, 5-1/4 in. long, 10-1/4 coils

1шт.

3

5102BA

SEAT

spring

1шт.

4

15256B

BOLT,7/16" - 14 x 6 1/4"

spring eye

1шт.

106930

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd solid

1шт.

5

NS

NOT SERVICED

CONNECTION, adjusting bracket to shank, discontinued for service

1шт.

30787B

PIN, 7/16 x 1-7/8 special fl-hd

2шт.

6

1080B

BRACKET, adjusting

1шт.

104118

RIVET, 3/8 x 1-5/8 rd-hd

2шт.

7

1079BA

BAR, adjusting

1шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 znd sq-nk crg

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

1шт.

522425R1

BOLT, 1/2 x 1-3/4 hex-hd mach

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex. jam

1шт.

8

3617B

BUSHING

standard

1шт.

9

484BA

WASHER

WASHER, corrugated

2шт.

10

30667B

SHANK

slotted

1шт.

30730B

PIN, 7/16 x 1-3/8 special fl-hd

1шт.

11

5105BB

NUT

WASHER, spring

1шт.

12

27018B

ROD

spring

1шт.

IH104201

RIVET,Csk, 3/8" x 1 1/2"

3/8 x 1-1/2 90 deg csk-hd solid

1шт.

13

15282BA

SPRING

1-11/16 OD, 5-1/4 long, 10-1/4 coils

1шт.

14

1694BA

BRACKET

spring

1шт.

45-728

RIVET,But Hd, 7/16" x 1 3/4"

7/16 x 1-3/4 rd-hd

2шт.

15

27016BA

STRIP

2шт.

135203

RIVET,Csk, 7/16" x 3/4"

7/16 x 3/4 C-Z 90 deg csk-hd solid

2шт.

607891R1

WASHER

15/32 x 1 x 16 ga C-Z

2шт.

16

30811B

SHANK

slotted

1шт.

30813B

RIVET

1/2 x 1-3/8 std-pin-hd

1шт.

17

27017B

PIVOT

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

2шт.

18

27015BX

BOLT,Adj, Hex, 1/2" - 13 x 2 3/4", Drilled

W/NUT, adjusting

1шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 C-Z slt hex.

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

120396

WASHER

.531 x 1.062 x .074

1шт.

19

1695BA

YOKE

adjusting

1шт.

135210

DOOR

7/16 x 1-1/2 90 deg csk-hd solid

1шт.

20

27326BA

SPACER

1шт.
