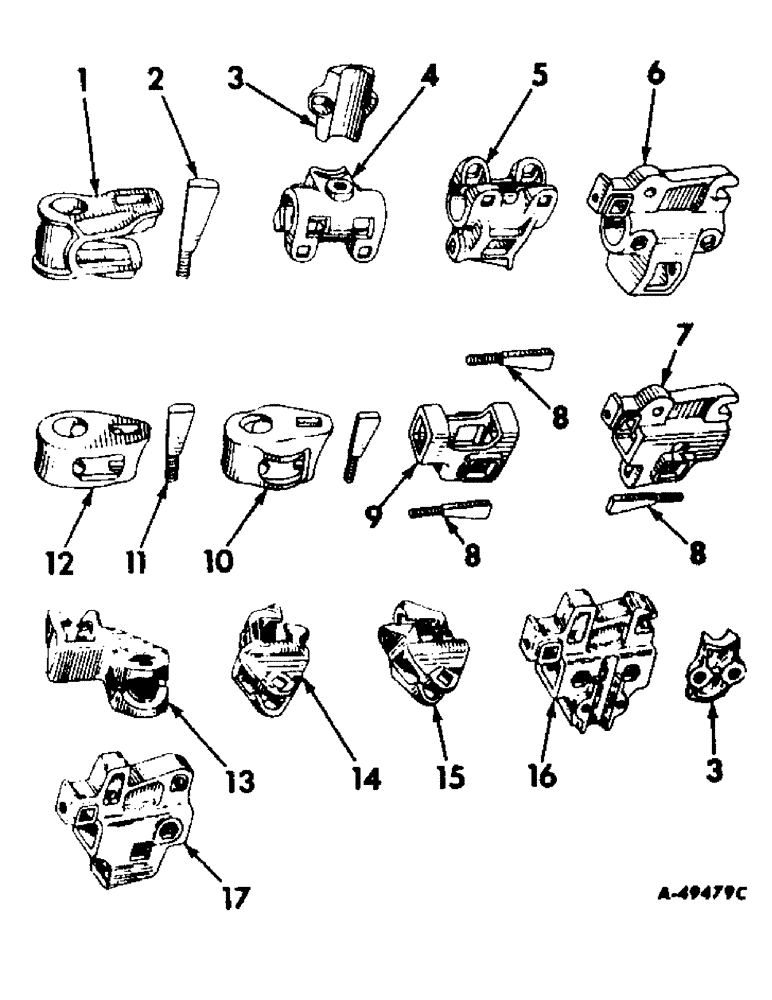

Запчасти Case IH INTERNATIONAL (YA-2) - CLAMPS
№
Артикул
Название
Примечание
Количество
1
512387R3
CLAMP
1-3/8 in. square tool bar, standard open, for 1-1/4 in. dia standard
1шт.
2
512384R1
BOLT
standard open clamp hose
1шт.
3
1779BB
CLAMP
CAP
1шт.
4
1869BX
CLAMP
W/SET SCREW, 1.66 OD, pipe tool bar standard, for 1-1/4 in. dia standard
1шт.
18710R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2
BOLT, 1/2 x 3 in. C-Z sq-nk crg
2шт.
29821B
BOLT, 1/2 x 2-1/2 in. sq-hd mach
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
112980
SET SCREW,Sq Hd, 5/8"-11 x 1"
SCREW, 5/8 x 1 in. cup-pt sq-hd set
1шт.
5
1846BX
CLAMP
W/SET SCREW, 1.66 in. OD, pipe tool bar extension, for 1-1/4 in. square extension
1шт.
18709R1
BOLT,Short NK, 1/2"-13 x 2 3/4", G2
1/2 x 2-3/4 in. C-Z sq-nk crg
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
112980
SET SCREW,Sq Hd, 5/8"-11 x 1"
SCREW, 5/8 x 1 in. cup-pt sq-hd set
1шт.
6
522641R1
CLAMP
1.66 in. OD, pipe tool bar attaching, for 1-1/4 in. square standard or extension
1шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 in. C-Z mach
2шт.
18811R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2 x 2-3/4 in. C-Z mach
4шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
112980
SET SCREW,Sq Hd, 5/8"-11 x 1"
SCREW, 5/8 x 1 in. cup-pt sq-hd set
2шт.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
7
522558R1
CLAMP, 1-3/8 in. square tool bar attaching, for 1-1/4 in. square standard or extension
1шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 1 in. C-Z mach
1шт.
18811R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2 x 2-3/4 in. C-Z mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
8
27585BA
BOLT,Wedge, 1/2" - 13 x 4 1/2", Long
clamp wedge
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
9
522556R1
CLAMP
1-3/8 in. sq tool bar, for 1-1/4 in. sq standard or extension
1шт.
10
522557R2
CLAMP
1-3/8 in. sq tool bar, for 1-1/4 in. rd standard
1шт.
11
511990R1
BOLT
KEY, stnadard closed clamps wedge
1шт.
102639
NUT,5/8"-11, G5
1шт.
12
511985R2
CLAMP
1-3/8 in. square tool bar standard closed, for 1-1/4 in. dia standard
1шт.
13
NS
NOT SERVICED
CLAMP, long tool bar extension, discontinued for service
1шт.
15146R1
BOLT, 5/8 x 3 in. sq-nk crg
1шт.
13418R1
BOLT
5/8 x 3 in. sq-hd mach
1шт.
102639
NUT,5/8"-11, G5
1шт.
14
518958R2
CLAMP
straight tool bar extension
1шт.
15146R1
BOLT, 5/8 x 3 in. sq-nk crg
1шт.
13418R1
BOLT
5/8 x 3 in. sq-hd mach
1шт.
102639
NUT,5/8"-11, G5
1шт.
15
518956R3
CLAMP
short tool bar extension
1шт.
15146R1
BOLT, 5/8 x 3 in. sq-nk crg
1шт.
13418R1
BOLT
5/8 x 3 in. sq-hd mach
1шт.
102639
NUT,5/8"-11, G5
1шт.
16
NS
NOT SERVICED
CLAMP, tool bar attaching, discontinued for service
1шт.
17428R1
BOLT,Hex, 1/2"-13 x 1", G2, Full Thd
1/2 x 1 in. mach
1шт.
17603R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2 x 2-3/4 in. mach
2шт.
102637
NUT,1/2"-13, G5
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
17
NS
NOT SERVICED
CLAMP, tool bar attaching, discontinued for service
1шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2 x 2-3/4 in. C-Z mach
1шт.
18811R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2 x 2-3/4 in. C-Z mach
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
Выбрано товаров: 53
