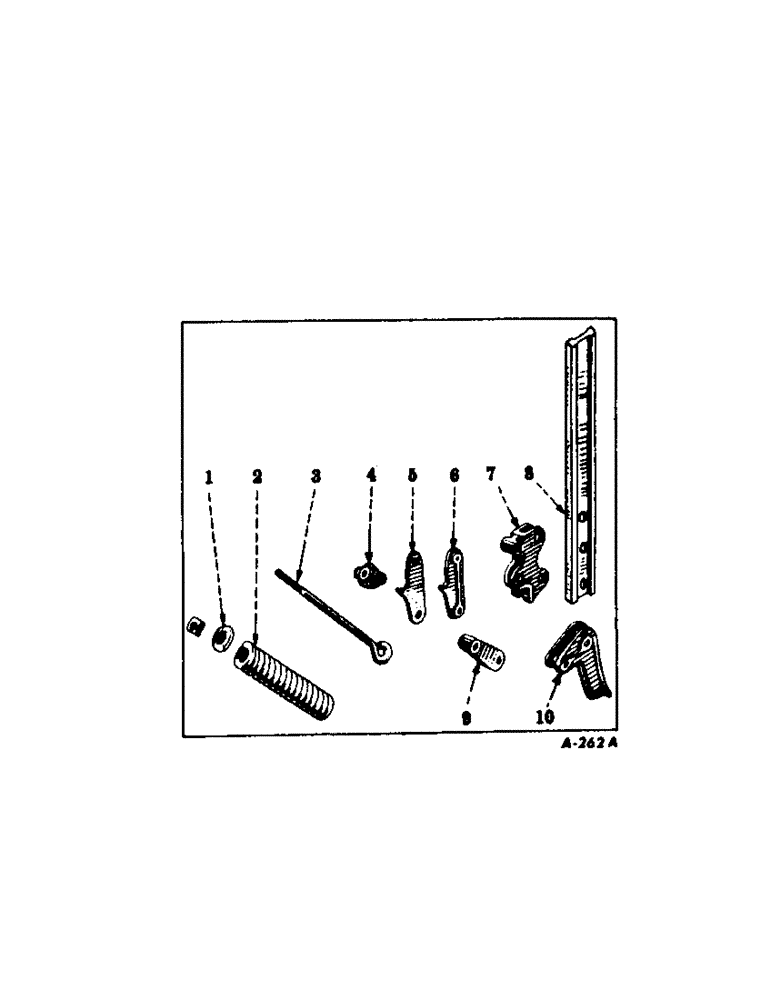

Запчасти Case IH INTERNATIONAL (YA-7) - SPRING TRIP, NO. 15 TYPE

1

PO593

WASHER, upper spring

1шт.

2

PO102

SPRING

trip, 1-1/4 in. OD, 6-1/8 in. long, 15 coils

1шт.

3

NS

NOT SERVICED

BOLT, spring, discontinued for service

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

4

NS

NOT SERVICED

WASHER, spring, discontinued for service

1шт.

5

NS

NOT SERVICED

LINK, left upper, discontinued for service

1шт.

6

NS

NOT SERVICED

LINK, right upper, discontinued for service

1шт.

108684

CROSS PIN

RIVET, 3/8 x 1-7/8 in. rd-hd

2шт.

7

NS

NOT SERVICED

BRACKET, spring, discontinued for service

1шт.

104197

RIVET,Csk, 3/8" x 1"

3/8 x 1 pln 90 d c/hd sol

1шт.

IH104201

RIVET,Csk, 3/8" x 1 1/2"

3/8 x 1-1/2 pln 90 d c/hd sol

2шт.

8

NS

NOT SERVICED

STANDARD, 1-1/2 x 9/16 in., discontinued for service

1шт.

9

NS

NOT SERVICED

LINK, lower, discontinued for service

1шт.

10

NS

NOT SERVICED

SHANK, break-off, discontinued for service

1шт.

104118

RIVET, 3/8 x 1-5/8 pln but/hd sol

1шт.

110437

RIVET,But Hd, 7/16" x 1 1/2"

7/16 x 1-1/2 pln but/hd sol

1шт.
