Запчасти Case IH FC-SERIES (12) - MAIN FRAME AND EXTENSION, 11-6 AND 12-6

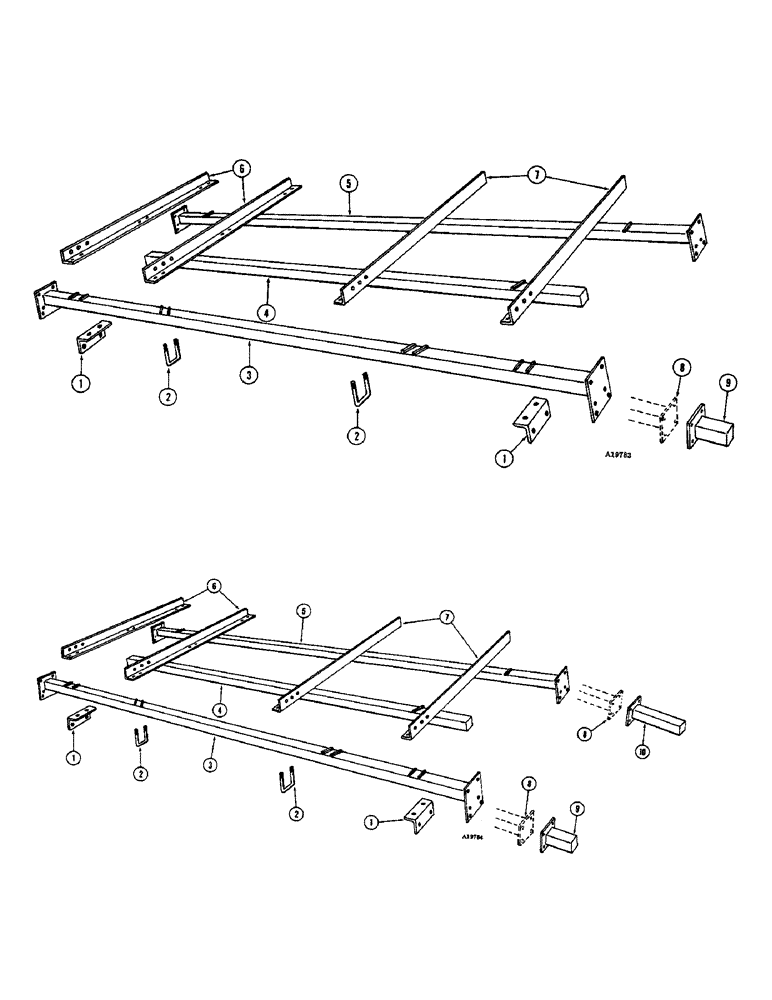

Схема запчастей Case IH FC-SERIES - (12) - MAIN FRAME AND EXTENSION, 11-6 AND 12-6

Артикул

Название

Примечание

Количество

1

T28877

BRACKET - axle (YR. 64-)

2шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 64-)

10шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

20шт.

3

T28872

FRAME - front (YR. 64-)

1шт.

4

T28873

FRAME - center (YR. 64-)

1шт.

5

T28874

FRAME - rear (YR. 64-)

1шт.

6

T28875

ANGLE - cross, R.H. (YR. 64-)

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

7

T28876

ANGLE - cross, L.H. (YR. 64-)

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

8

T28897

PLATE - mounting, extension (11-6) (YR. 64-)

2шт.

T28897

PLATE - mounting, extension (12-6) (YR. 64-)

4шт.

9

T28896

EXTENSION - short (YR. 64-)

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

10

T28898

EXTENSION

- medium (12-6) (YR. 64-)

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

(12-6) Hex, 1/2"-13 x 1 3/4", G5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, (12-6) 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

(12-6) 1/2"-13, G5

8шт.

Выбрано товаров: 28
