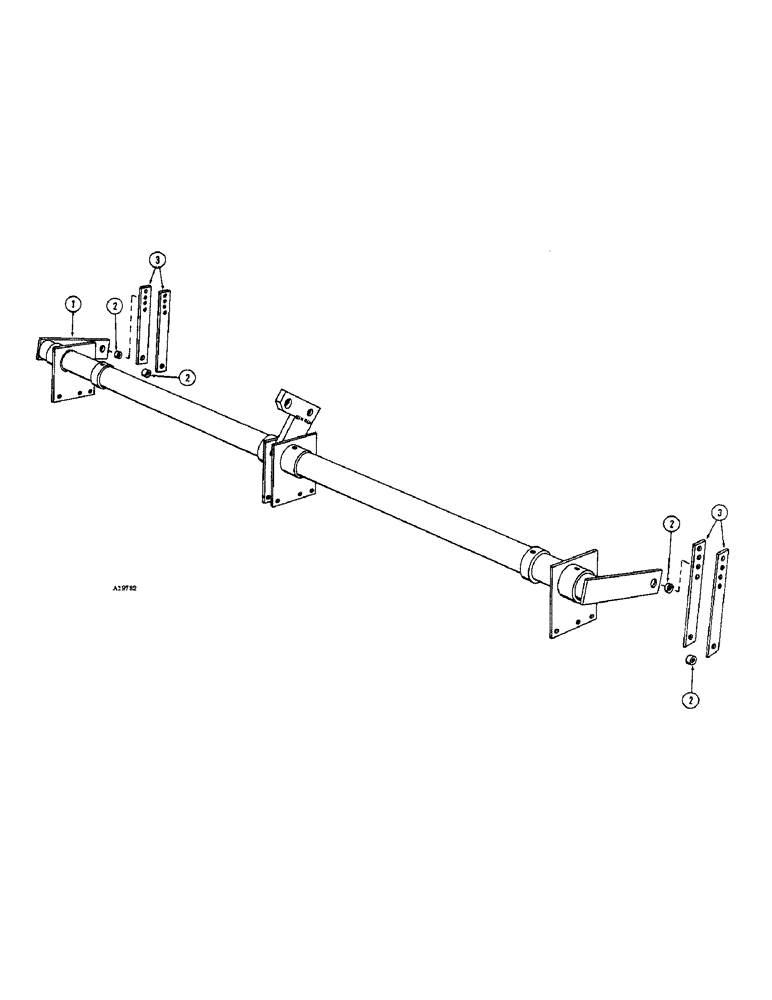

Запчасти Case IH FC-SERIES (08) - HYDRAULIC RAISING SHAFT

1

T28891

X

SHAFT - raising (Repl. by 1-T50875 & 1-T28975) (YR. 64-66)

1шт.

1

T35683

SHAFT

- raising (Repl. by T-50875) (YR. 67-69)

1шт.

1

T50875

SHAFT

- raising (YR. 70-)

1шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex. hd.

3шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

9шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

9шт.

181-805

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

- 3/8" x 1/2" sq. hd.

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" straight

4шт.

2

T28985

BUSHING - 1" rd. x 11/16" (YR. 64-66)

4шт.

2

T28975

BUSHING

- 1" rd. x 13/16" (YR. 67-)

4шт.

3

T28941

LINK

(YR. 64-66)

4шт.

3

T35684

LINK

(YR. 67-)

4шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.
