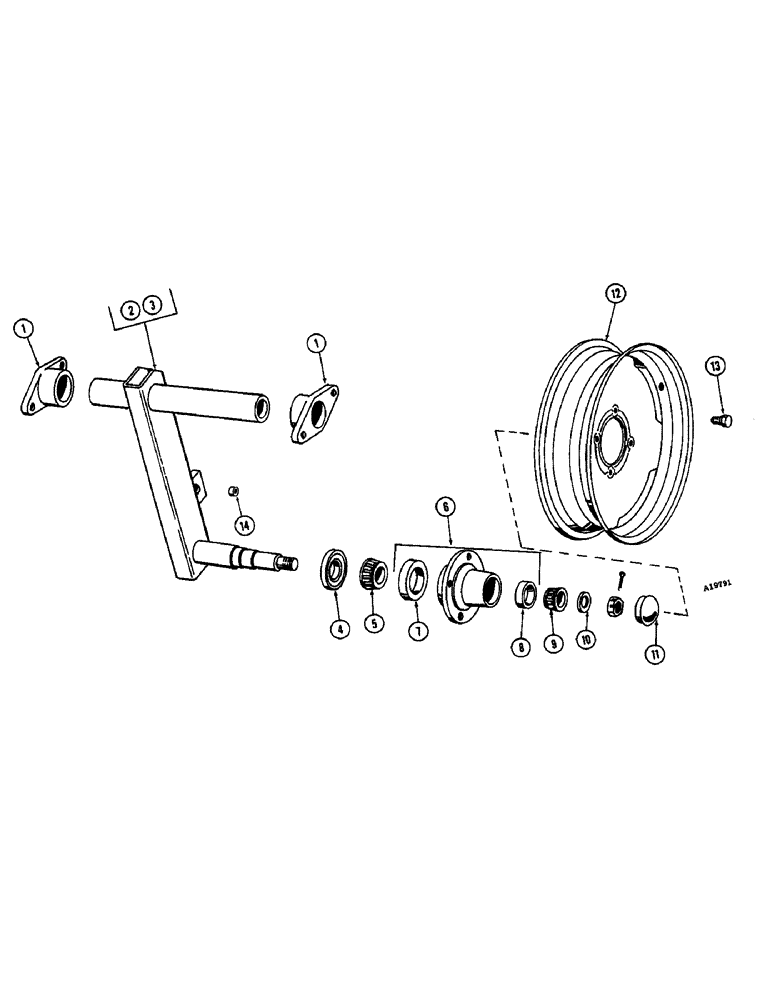

Запчасти Case IH FC-SERIES (08[A]) - AXLE AND WHEEL

1

T1934

BEARING

(YR. 64-), axle and wheel

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Axle and wheel Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Axle and wheel Hex, 1/2"-13 x 2", G5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Axle and wheel 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

Axle and wheel 1/2"-13, G5

8шт.

2

T28887

AXLE

- R.H. (Repl. by T-35681 & 1-T28975) (YR. 64-66), wheel

1шт.

2

T35681

AXLE

- R.H. (YR. 67-), wheel

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - 3/4" N.F., axle and wheel

1шт.

132-311

COTTER PIN,5/32" x 1 1/4"

axle and wheel 5/32" x 1 1/4"

1шт.

3

T28890

X

AXLE - L.H. (Repl. by 1-T35682 & 1-T28975) (YR. 64-66), wheel

1шт.

3

T35682

AXLE L.H. (YR. 67-), wheel

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - 3/4" N.F. hex., axle and wheel

1шт.

132-311

COTTER PIN,5/32" x 1 1/4"

axle and wheel 5/32" x 1 1/4"

1шт.

4

T28889

SEAL

- grease (YR. 64-), axle and wheel

2шт.

5

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

BEARING - roller, inner (YR. 64-), axle and wheel

2шт.

6

T1935

HUB

(YR. 64-), axle and wheel

2шт.

7

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - inner (YR. 64-), axle and wheel

1шт.

8

B12410

BEARING, CUP,1.782" OD

CUP - inner (YR. 64-), axle and wheel

1шт.

9

B12411

ROLLER BEARING,0.75" ID x 0.655"

BEARING - roller, outer (YR. 64-), axle and wheel

2шт.

10

T28976

WASHER

(YR. 64-), axle and wheel

2шт.

11

T28888

X

CAP - hub (YR. 64-), axle and wheel

2шт.

12

T25852

RIM

WHEEL - 14" (YR. 64-), axle

2шт.

12

B18157

WHEEL - 15" (YR. 67-), axle

2шт.

13

T28977

BOLT - lug (YR. 64-), axle and wheel

8шт.

14

T28975

BUSHING

- 1" rd. x 13/16 (YR. 67-), axle and wheel

1шт.
