Запчасти Case IH FC-SERIES (72) - MAIN FRAME AND EXTENSION, 15-6

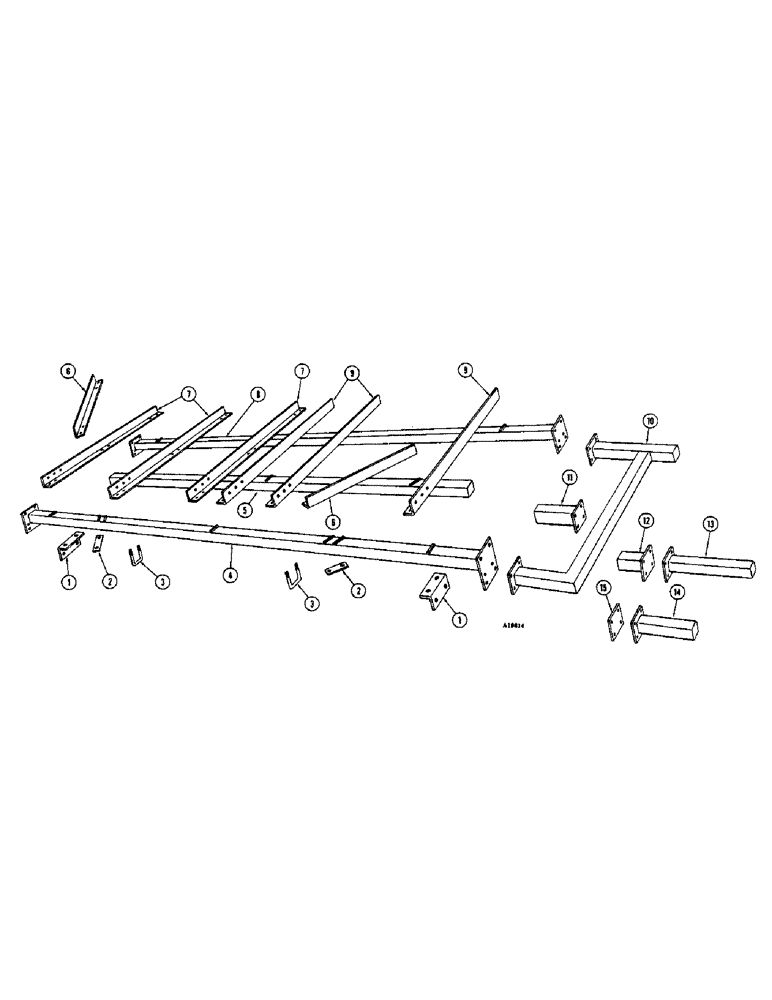

Схема запчастей Case IH FC-SERIES - (72) - MAIN FRAME AND EXTENSION, 15-6

Артикул

Название

Примечание

Количество

1

T28877

BRACKET - axle (YR. 64-)

2шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

T28886

PLATE - mounting (YR. 64-)

4шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

3

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 64-69)

16шт.

3

T50871

U-BOLT

"U" BOLT (YR. 70-)

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

32шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

32шт.

4

T28872

FRAME - front (YR. 64-)

1шт.

5

T28873

FRAME - center (YR. 64-)

1шт.

6

T30653

LARGE PIN

ANGLE - brace (YR. 64-)

2шт.

7

T28875

ANGLE - cross, R.H. (YR. 64-)

3шт.

8

T28874

FRAME - rear (YR. 64-)

1шт.

9

T28876

ANGLE - cross, L.H. (YR. 64-)

3шт.

10

T28900

FRAME - extension (YR. 64-)

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

11

T35636

EXTENSION - medium short, 9" (YR. 67-)

2шт.

111-513

BOLT

- 1/2" x 4-1/2" N.C. cge.

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

12

T28896

EXTENSION (YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

13

T28899

EXTENSION - long, 20" (YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

14

T28898

EXTENSION

(YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

15

T28897

PLATE - mounting (YR. 64-)

6шт.

Выбрано товаров: 39
