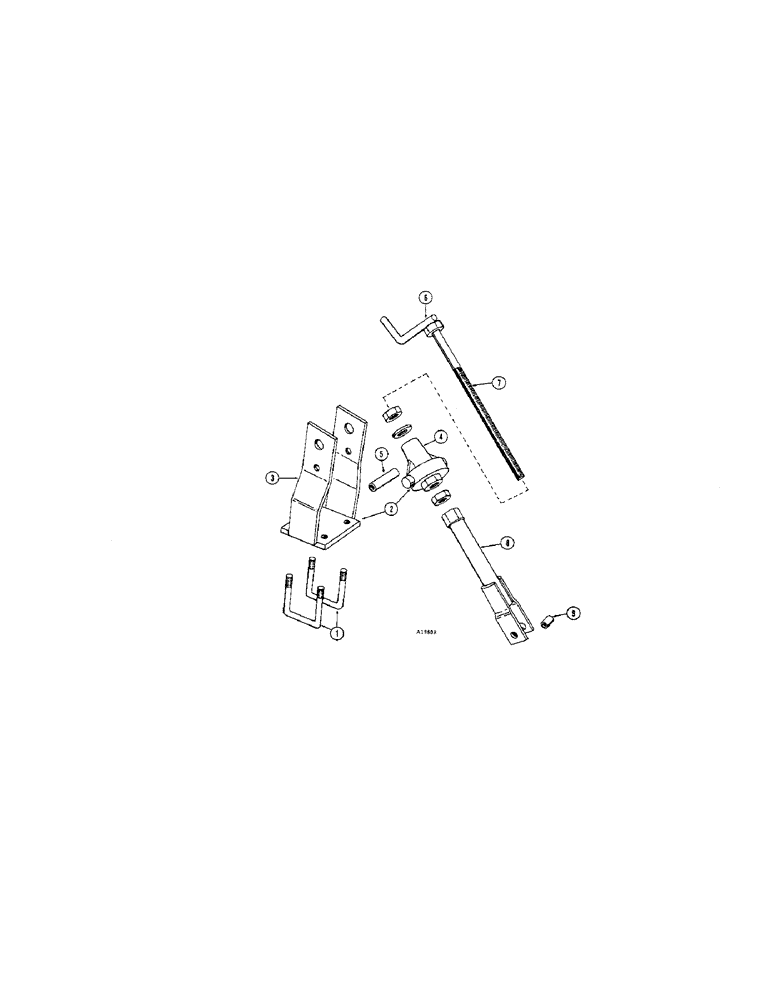

Запчасти Case IH FC-SERIES (64) - GAUGE WHEEL BRACKET

1

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 64-69)

4шт.

1

T50871

U-BOLT

"U" BOLT (YR. 70-)

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

2

T62577

BRACKET AND SWIVEL ASSEMBLY - (Repl. by 1-T1948 and 1-T50872) (YR. 66-)

2шт.

3

T30655

BRACKET - gauge wheel (YR. 64-69)

2шт.

3

T50872

BRACKET - gauge wheel (Repl. T30655 inter.) (YR. 69-)

2шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

4

T1948

SWIVEL (YR. 64-)

2шт.

5

T30659

SLEEVE (YR. 64-)

2шт.

6

T30657

HANDLE (YR. 64-)

2шт.

7

T30656

ROD

- control (YR. 64-)

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4"

4шт.

8

T30658

BRACKET - control (YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

9

T28985

BUSHING (YR. 64-)

2шт.
