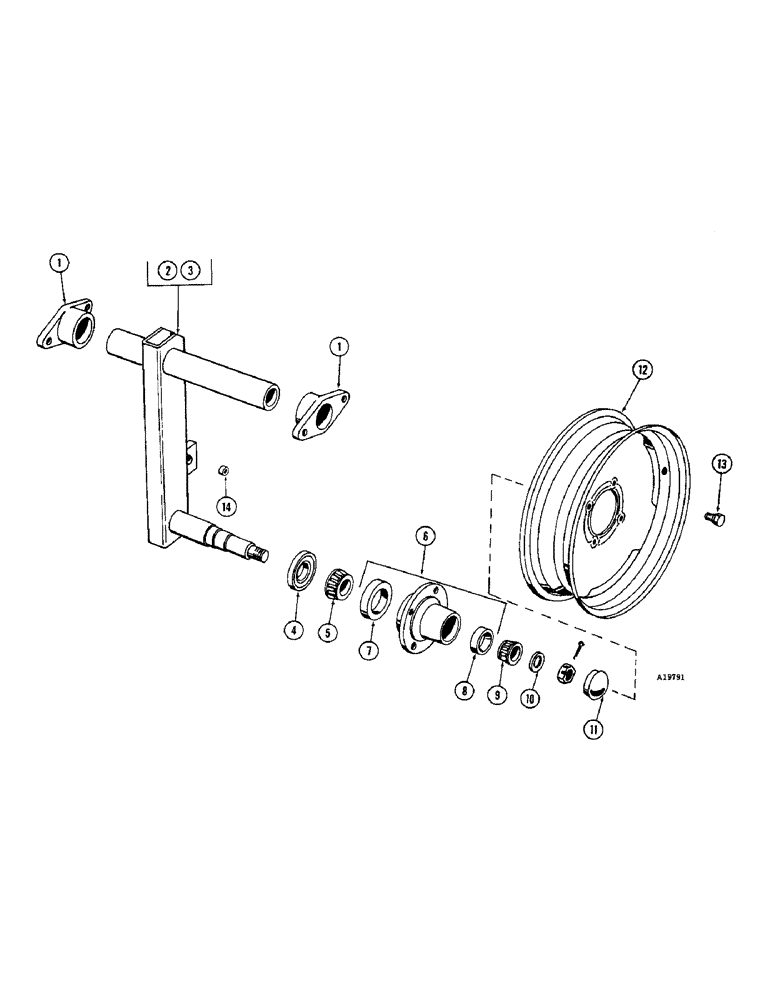

Запчасти Case IH FC-SERIES (64[A]) - AXLE AND WHEEL

1

T1934

BEARING

(YR. 64-)

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

T28887

AXLE

- R.H. (Repl. by T35681 and T28975) (YR. 64-66)

1шт.

2

T35681

AXLE

- R.H. (YR. 67-)

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - 3/4" N.F. hex.

1шт.

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

1шт.

3

T28890

X

AXLE - L.H. (Repl. by T35682 and T28975) (YR. 64-66)

1шт.

3

T35682

AXLE - L.H. (YR. 67-)

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - 3/4" N.F. hex.

1шт.

132-311

COTTER PIN,5/32" x 1 1/4"

5/32" x 1 1/4"

1шт.

4

T28889

SEAL

- grease (YR. 64-)

1шт.

5

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

BEARING - roller, inner (YR. 64-)

1шт.

6

T1935

HUB

- w/cups (YR. 64-)

1шт.

7

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - inner (YR. 64-)

1шт.

8

B12410

BEARING, CUP,1.782" OD

CUP - outer (YR. 64-)

1шт.

9

B12411

ROLLER BEARING,0.75" ID x 0.655"

BEARING - roller, outer (YR. 64-)

1шт.

10

T28976

WASHER

(YR. 64-)

1шт.

11

T28888

X

CAP - hub (YR. 64-)

1шт.

12

T25852

RIM

WHEEL - 14" (YR. 64-)

1шт.

12

B18157

WHEEL - 15" (YR. 64-)

1шт.

13

T28977

BOLT - lug (YR. 64-)

4шт.

14

T28975

BUSHING

- 1" rd. x 13/16" (YR. 67-)

1шт.
