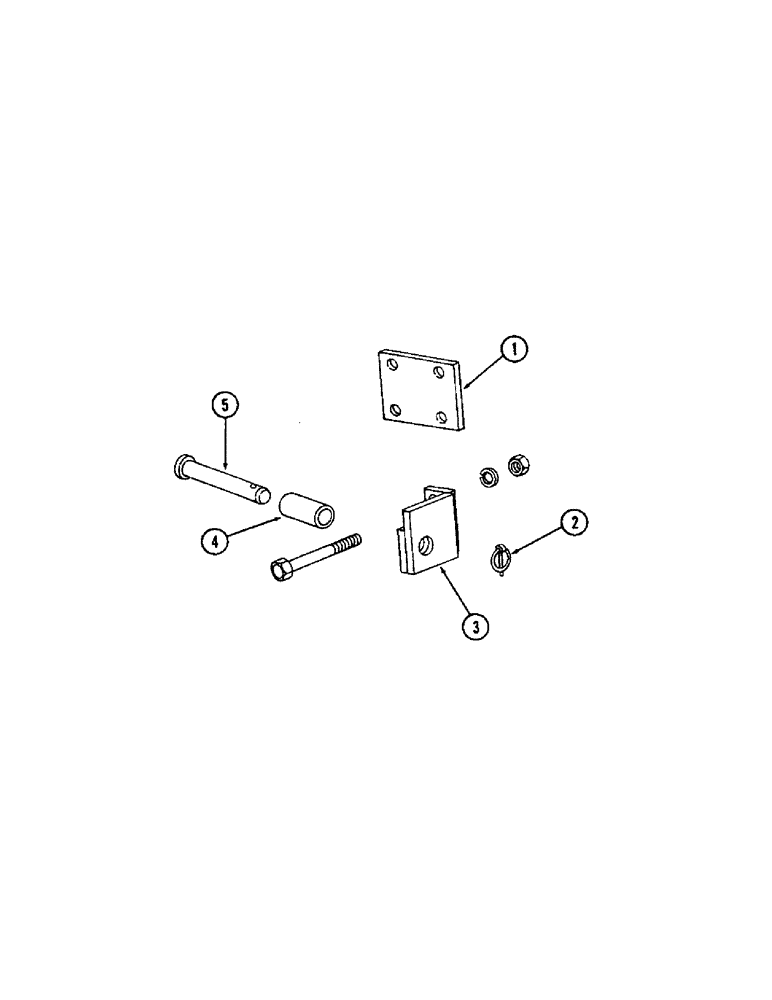

Запчасти Case IH FC-SERIES (63A[A]) - STRADDLE MOUNT LINK PIN, FCAM

1

T50110

PLATE (YR. 69-)

2шт.

2

T50113

PIN

- clinch (YR. 69-)

2шт.

3

T50109

BRACKET - pin, L.H. (Shown) (YR. 69-)

1шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

3

T50108

BRACKET - pin, R.H. (YR. 69-)

1шт.

113-619

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

4

T50111

PIPE

SLEEVE (YR. 69-)

2шт.

5

T50112

PIN

- clevis (YR. 69-)

2шт.
