Запчасти Case IH FC-SERIES (54) - WING FRAME, TRUSS RODS AND EXTENSION, 27-6

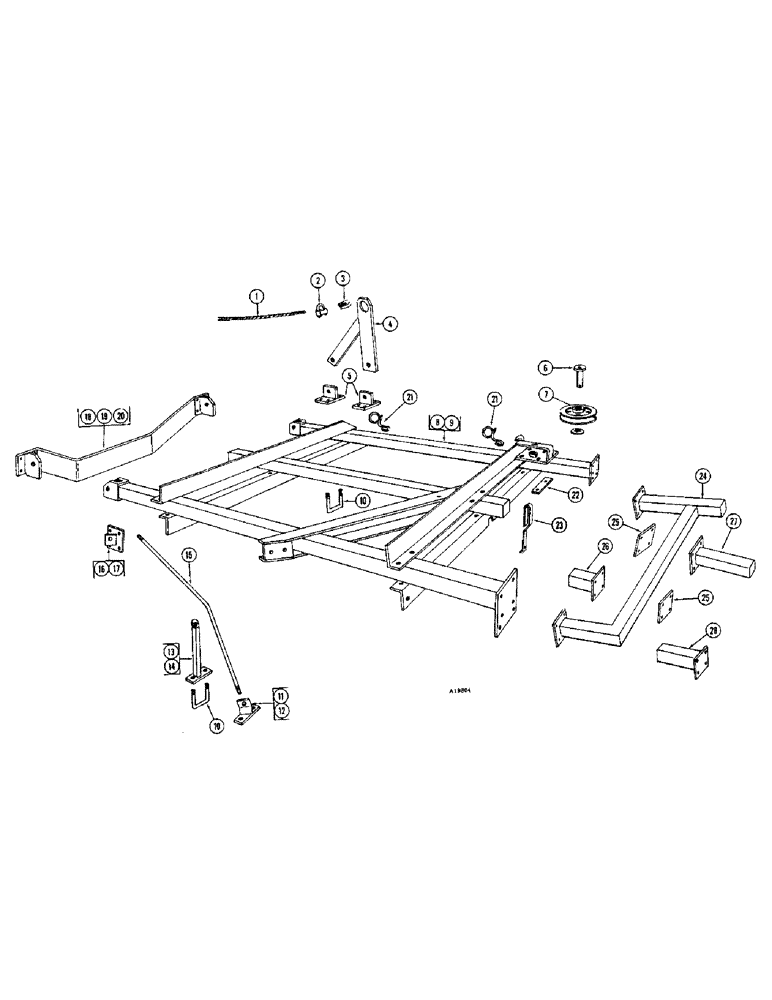

Схема запчастей Case IH FC-SERIES - (54) - WING FRAME, TRUSS RODS AND EXTENSION, 27-6

Артикул

Название

Примечание

Количество

1

T28957

CABLE - wing lift (5/16" x 11' - 6") (YR. 64-)

2шт.

2

MT2366S

CLAMP - cable, 5/16" (YR. 64-)

8шт.

3

MT2367S

THIMBLE - cable, 5/16" (YR. 64-)

2шт.

4

T28946

SUPPORT - truss rod (YR. 64-)

2шт.

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

4шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

129-108

NUT,3/4"-10, G5

4шт.

5

T28948

BAR - mounting, cable (YR. 64-)

4шт.

6

T28965

PIN

- sheave (YR. 64-)

2шт.

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

195-111

WASHER,1"

- 2-1/2" x 1-1/16" x 8 ga.

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

2шт.

7

T28966

SHEAVE - with A55256 bushing (YR. 64-)

2шт.

7a

A55256

BUSHING

- (Not shown) (YR. 66-)

2шт.

8

T29021

FRAME - wing, R.H. (YR. 64-)

1шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

12шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

18шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

18шт.

113-902

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

2шт.

129-110

NUT,1"-8, G5

2шт.

129-150

NUT,Jam, 1"-8, G5

- 1" N.C. hex. jam

2шт.

9

T29022

FRAME - wing, L.H. (Hardware same as ref. no. 8) (YR. 64-)

1шт.

10

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 64-)

14шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

28шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

28шт.

11

T28930

BRACKET - truss rod, R.H. (YR. 64-)

1шт.

12

T28931

BRACKET - truss rod, L.H. (YR. 64-)

1шт.

13

T28926

BRACKET - center, truss rod, R.H. (YR. 64-)

1шт.

14

T28927

BRACKET - center, truss rod, L.H. (YR. 64-)

1шт.

15

T28932

ROD - truss (YR. 64-)

2шт.

131-657

LOCK NUT,3/4"-10, GB

NUT - lock, 3/4"

4шт.

16

T28928

BRACKET - truss rod, R.H. (YR. 64-)

1шт.

17

T28929

BRACKET - truss rod, L.H. (YR. 64-)

1шт.

18

T28915

BAR - pivot, R.H. (YR. 64-67)

1шт.

19

T28916

BAR - pivot, R.H. (YR. 64-67)

1шт.

20

T37950

BAR - pivot (YR. 67-)

2шт.

21

T37944

GUIDE - cable (YR. 67-)

4шт.

22

T29045

BRACKET (YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

23

T37945

GUIDE - cable (YR. 64-67)

2шт.

24

T28900

FRAME - extension (YR. 64-)

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

25

T28897

PLATE - mounting (YR. 64-)

6шт.

26

T28896

EXTENSION (YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

27

T28898

EXTENSION

(Hardware same as ref. no. 26) (YR. 64-)

2шт.

28

T35636

EXTENSION - medium short, 9" (YR. 67-)

2шт.

111-513

BOLT

- 1/2" x 4-1/2" N.C. cge.

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

Выбрано товаров: 57
