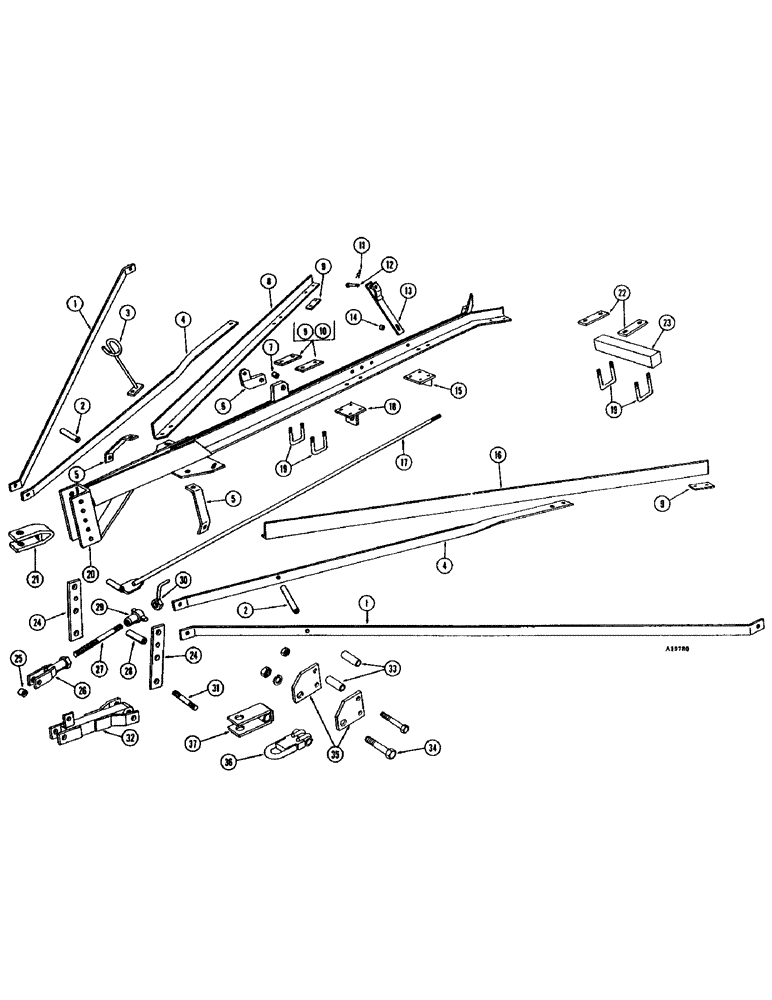

Запчасти Case IH FC-SERIES (04) - HITCH

1

T28902

BRACE - frame (YR. 64-)

2шт.

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

131-657

LOCK NUT,3/4"-10, GB

NUT - lock, 3/4"

1шт.

113-423

BOLT,Hex, 1/2" - 13 x 7", Gr 5

- 1/2" x 7" N.C. hex. hd.

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

2

T28986

SPACER (YR. 64-)

2шт.

3

T28881

CARRIER - hose (Repl. by T35693) (YR. 64-66)

1шт.

3

T35693

CARRIER - hose (YR. 67-)

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

4

T28882

BRONZE BUSHING

BRACE - long, twisted (YR. 64-)

2шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

5

T28883

BRACE - side (YR. 64-)

2шт.

6

T35695

LUG - cylinder (YR. 67-)

1шт.

7

T28975

BUSHING

(YR. 67-)

1шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

8

T28879

BRACE - hitch, R.H. (YR. 64-)

1шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

9

T28886

PLATE - mounting (YR. 64-66)

4шт.

9

T28886

PLATE - mounting (YR. 67-)

2шт.

10

T28912

BRACKET - mounting (YR. 67-)

2шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

11

T28981

COTTER - hairpin (YR. 64-)

1шт.

12

T28984

PIN - clevis (YR. 64-)

1шт.

13

T28885

BRACKET

- transport arm (Repl. by T50874) (YR. 64-69)

1шт.

13

T50874

BRACKET

- transport arm (YR. 70-)

1шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

14

TD3877

BUSHING - 3/4" rd. x 9/16" (YR. 64-66)

1шт.

14

T35694

BUSHING - 27/32" rd. x 7/16" (YR. 67-)

1шт.

15

T28908

BRACKET - truss rod (YR. 64-)

1шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

4шт.

16

T28880

BRACE - hitch L.H. (YR. 64-)

1шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C hex. hd.

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

17

T28906

ROD - truss (YR. 64-)

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.
