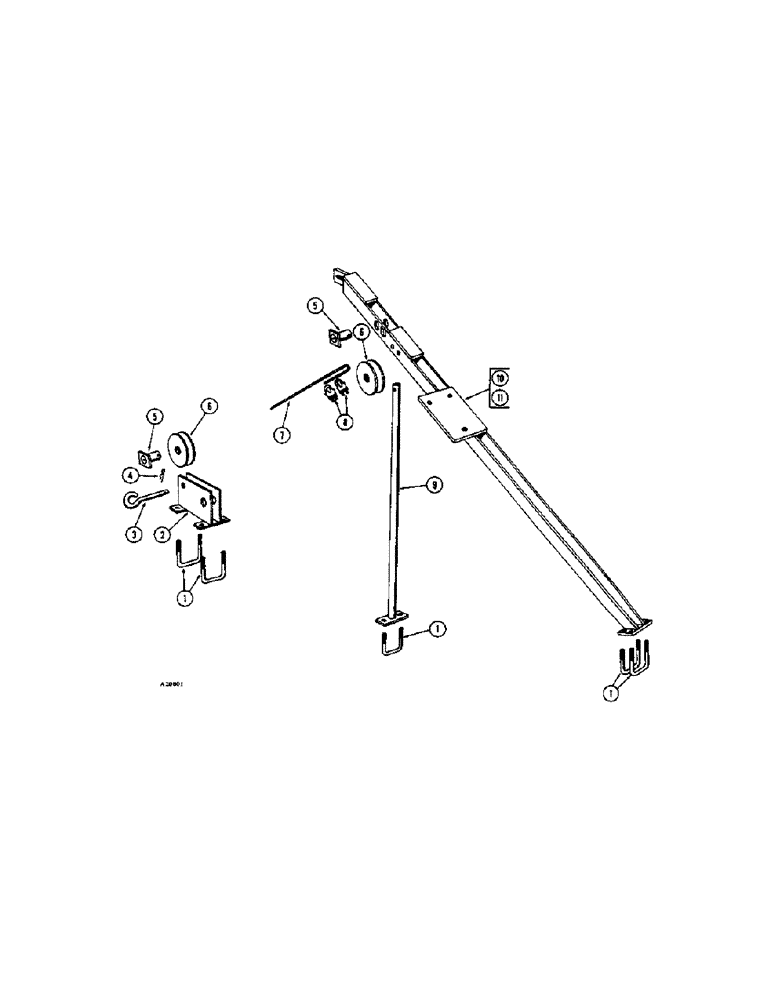

Запчасти Case IH FC-SERIES (42) - MECHANICAL WING LIFT, FCW 236 AND 246

1

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 66-)

10шт.

129-23

NUT,#4-48

LOCKWASHER - 1/2"

20шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

20шт.

2

T35421

BLOCK - snatch (YR. 66-)

2шт.

3

T35425

PIN - clevis (YR. 66-)

2шт.

4

T28981

COTTER - hairpin (YR. 66-)

2шт.

5

T35423

PIN - sheave (YR. 66-)

4шт.

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

4шт.

6

T28956

SHEAVE (YR. 66-)

4шт.

7

T35426

CABLE (YR. 66-)

2шт.

8

MT2366S

CLAMP - cable (YR. 66-)

4шт.

9

T35422

BRACE (YR. 66-)

2шт.

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex.

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

T35419

MOUNT - windlass, R.H. (YR. 66-)

1шт.

11

T35420

MOUNT - windlass, L.H. (YR. 66-)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.
