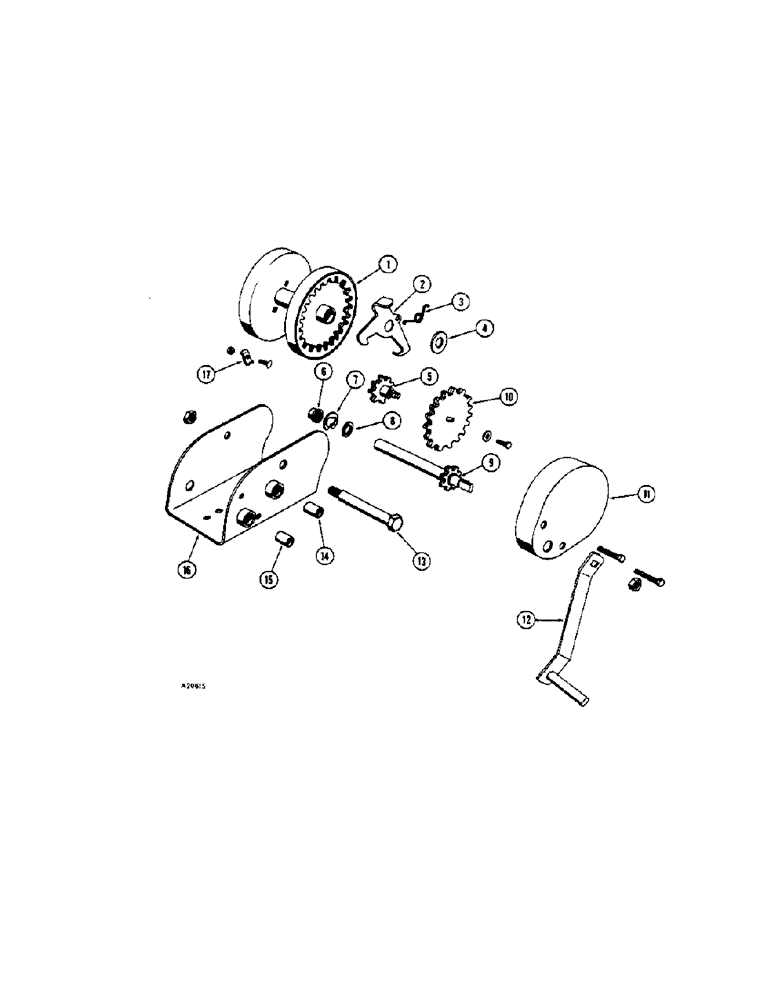

Запчасти Case IH FC-SERIES (42[A]) - WINCH, FCW 236 AND 246

T35424

X

WINCH - complete (YR. 66-67)

2шт.

1

T33987

REEL (YR. 66-67)

1шт.

2

T33988

RATCHET (YR. 66-67)

1шт.

3

T33989

SPRING - ratchet (YR. 66-67)

1шт.

4

T33993

SPACER - ratchet (YR. 66-67)

1шт.

5

T36863

SHAFT - drive (YR. 66-67)

1шт.

6

T30870

BEARING - Oilite, 1/2" (YR. 66-67)

1шт.

7

T30882

RING - retaining (YR. 66-67)

1шт.

8

T36858

WASHER - spacer (YR. 66-67)

1шт.

9

T36859

SHAFT - drive, lower (YR. 66-67)

1шт.

10

T36862

GEAR - 20 tooth (YR. 66-67)

1шт.

113-7

BOLT,Locking, 1/4" - 20 x 1/2", Gr 5, Full Thd

Locking, 1/4"-20 x 1/2", G5, Full Thd

1шт.

195-520

WASHER,1/4"

- 7/8" x 5/16" x 16 ga., Z.P.

1шт.

11

T36860

COVER - gear (YR. 66-67)

1шт.

172-204

SCREW - machine, 1/4" x 1-1/4" N.C. Z.P.

2шт.

12

T33998

HANDLE (YR. 66-67)

1шт.

131-70

NUT,1/2"-13, GB

NUT - handle, 1/2" N.C. hex. lock, Esna, Z.P.

1шт.

13

T36857

BOLT - shoulder (YR. 66-67)

1шт.

131-52

NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. lock, Esna, Z.P.

1шт.

14

T36856

BEARING - Oilite, 3/4" (YR. 66-67)

1шт.

15

T33991

BEARING - Oilite, 9/16" (YR. 66-67)

1шт.

16

T36854

BASE - winch (YR. 66-67)

1шт.

17

T30880

CLAMP - rope (YR. 66-67)

1шт.

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4" x 1/2" N.C. cge. Z.P.

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.
