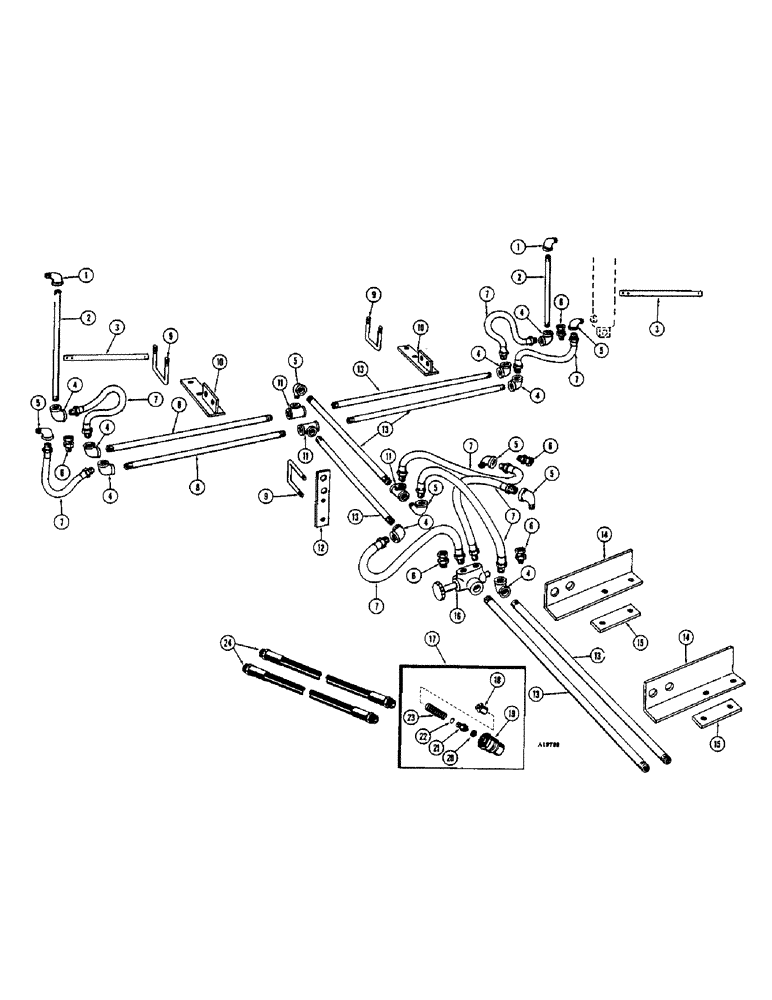

Запчасти Case IH FC-SERIES (40) - HYDRAULIC WING LIFT SYSTEM, HOSE AND COUPLING, FCAW

1

221-1561

ELBOW UNION

ELBOW - street (90 degree 1/2" female, 3/8" male) (YR. 64-)

2шт.

2

T28933

PIPE - cylinder (YR. 64-)

2шт.

3

T37955

STRAP - pipe (YR. 67-)

2шт.

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- machine, 1/4" x 1-3/4" rd. hd. N.C.Z.P.

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

4

221-1377

ELBOW,90 Degree, 1/2" NPT

- 1/2" x 90 degree (YR. 64-)

8шт.

5

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 1/2" (YR. 64-)

5шт.

6

221-1813

UNION - 1/2" (YR. 64-)

6шт.

7

T28958

HOSE - hydraulic (1/2" x 23") (YR. 64-)

8шт.

8

T28959

PIPE - cross (YR. 64-)

2шт.

9

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 64-)

3шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

10

T28949

BRACKET - pipe (YR. 64-67)

2шт.

10

T37952

BRACKET - pipe (YR. 67-)

2шт.

11

221-1424

TEE,Pipe, 1/2" NPT

- 1/2" (YR. 64-)

3шт.

12

T28951

COLLAR

BRACKET - pipe (YR. 64-)

1шт.

13

T28922

PIPE (YR. 64-67)

6шт.

13

T28922

PIPE (YR. 67-)

4шт.

13

T37949

PIPE - medium (YR. 67-)

2шт.

221-1338

COUPLING,Pipe, 1/2" NPT

- 1/2"

8шт.

14

T28969

BRACKET - pipe, pole (YR. 64-67)

2шт.

14

T37947

BRACKET - pipe (YR. 67-)

2шт.

15

T28970

CLAMP - pipe bracket (YR. 64-)

2шт.

113-225

BOLT,Hex, 3/8" - 16 x 5", Gr 5, Full Thd

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

16

T28953

SELECTOR VALVE (YR. 64-)

1шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

17

A28541

COUPLING, BREAK AWAY

COUPLING - break-away (YR. 67-), hose (fcaw), for tractors w/dual hydraulic system

2шт.

18

51200858

SLEEVE

- piston (YR. 67-), hose and coupling (fcaw), for tractors w/dual hydraulic system

1шт.

Part of BREAK-AWAY COUPLING REPAIR KIT, P/N A40459

1шт.

19

A27356

PIPE FITTING

BODY - coupling (YR. 67-), hose (fcaw), for tractors w/dual hydraulic system

1шт.

20

A33964

SEAL

- piston (YR. 67-), hose and coupling (fcaw), for tractors w/dual hydraulic system

1шт.

Part of BREAK-AWAY COUPLING REPAIR KIT, P/N A40459

1шт.

21

A27508

PISTON

- coupling (YR. 67), hose (fcaw), for tractors w/dual hydraulic system

1шт.

Part of BREAK-AWAY COUPLING REPAIR KIT, P/N A40459

1шт.

22

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston (YR. 67-), hose and coupling (fcaw), for tractors w/dual hydraulic system

1шт.

Part of BREAK-AWAY COUPLING REPAIR KIT, P/N A40459

1шт.

23

A27351

SPRING

- piston (YR. 67-), hose and coupling (fcaw), for tractors w/dual hydraulic system

1шт.

Part of BREAK-AWAY COUPLING REPAIR KIT, P/N A40459

1шт.

24

O8589AB

HOSE - hydraulic (1/2" x 80") (YR. 67-), coupling (fcaw), for tractors w/dual hydraulic system

2шт.

A40459

KIT

BREAK-AWAY COUPLING REPAIR KIT, Includes Refs., 18, 20, 21, 22 and 23

1шт.
