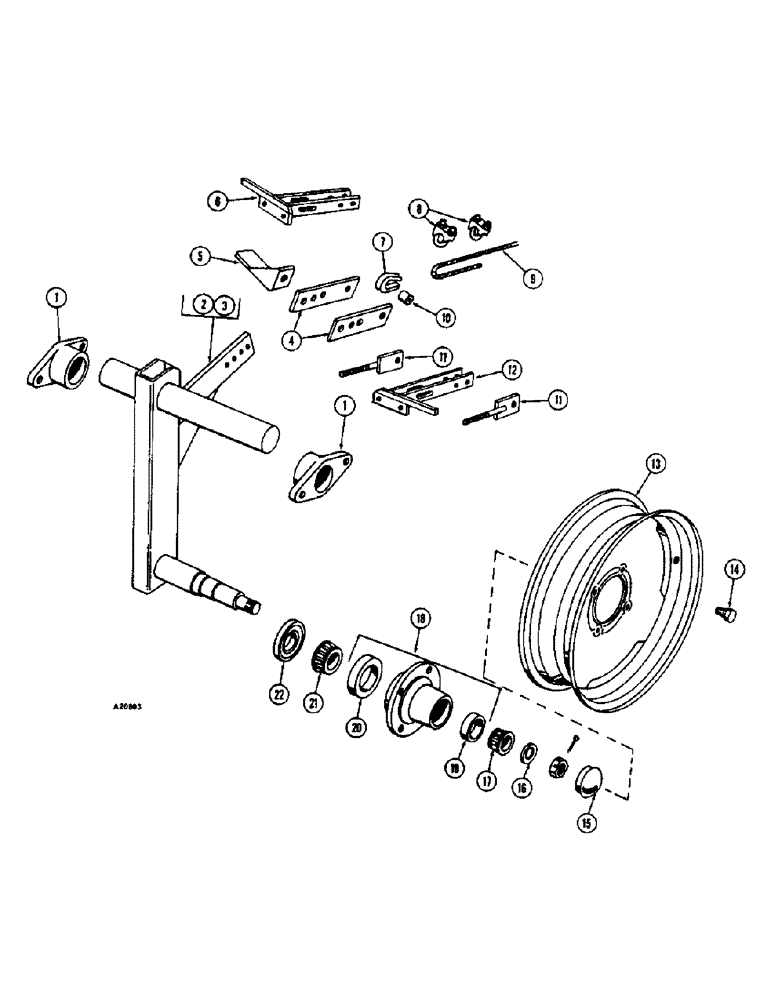

Запчасти Case IH FC-SERIES (38) - AXLE, WHEEL AND DEPTH CONTROL

1

T1934

BEARING

(YR. 64-)

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

T37942

AXLE - R.H. (YR. 64-)

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - 3/4" N.F. castle

1шт.

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

3

T37943

AXLE - L.H. (YR. 64-)

1шт.

25-1912

SLOTTED NUT,3/4"-16, G5, Thk

NUT - 3/4" N.F. castle

1шт.

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

4

T28967

LINK (YR. 64-67)

2шт.

4

T37946

LINK (YR. 67-)

2шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

129-107

NUT,5/8"-11, G5

2шт.

129-279

NUT - jam, 5/8" N.C. hex.

1шт.

5

T28968

STOP - wing (YR. 64-67)

1шт.

6

T37938

STOP - axle, R.H. (FCAW) (YR. 67-)

1шт.

7

T28972

THIMBLE - cable (YR. 64-)

1шт.

8

T28973

CLAMP - cable (YR. 64-)

2шт.

9

T28971

CABLE - depth control (1/2" x 12' - 9" lenth) (YR. 64-)

1шт.

10

T28975

BUSHING

(YR. 64-)

1шт.

11

T37937

BRACKET - adjusting (FCAW) (YR. 67-)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

129-279

NUT - 5/8" N.C. hex. jam, Z.P.

2шт.

12

T37939

STOP - axle, L.H. (FCAW) (YR. 67-)

1шт.

13

T25852

RIM

WHEEL - 14" (YR. 64-)

1шт.

13

B18157

WHEEL - 15" (YR. 67-)

1шт.

14

T28977

BOLT - lug (YR. 64-)

4шт.

15

T28888

X

CAP - hub (YR. 64-)

1шт.

16

T28976

WASHER

(YR. 64-)

1шт.

17

B12411

ROLLER BEARING,0.75" ID x 0.655"

BEARING - roller, outer (YR. 64-)

1шт.

18

T1935

HUB

- w/cups (YR. 64-)

1шт.

19

B12410

BEARING, CUP,1.782" OD

CUP - outer (YR. 64-)

1шт.

20

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - inner (YR. 64-)

1шт.

21

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

BEARING - roller, inner (YR. 64-)

1шт.

22

T28889

SEAL

- grease (YR. 64-)

1шт.
