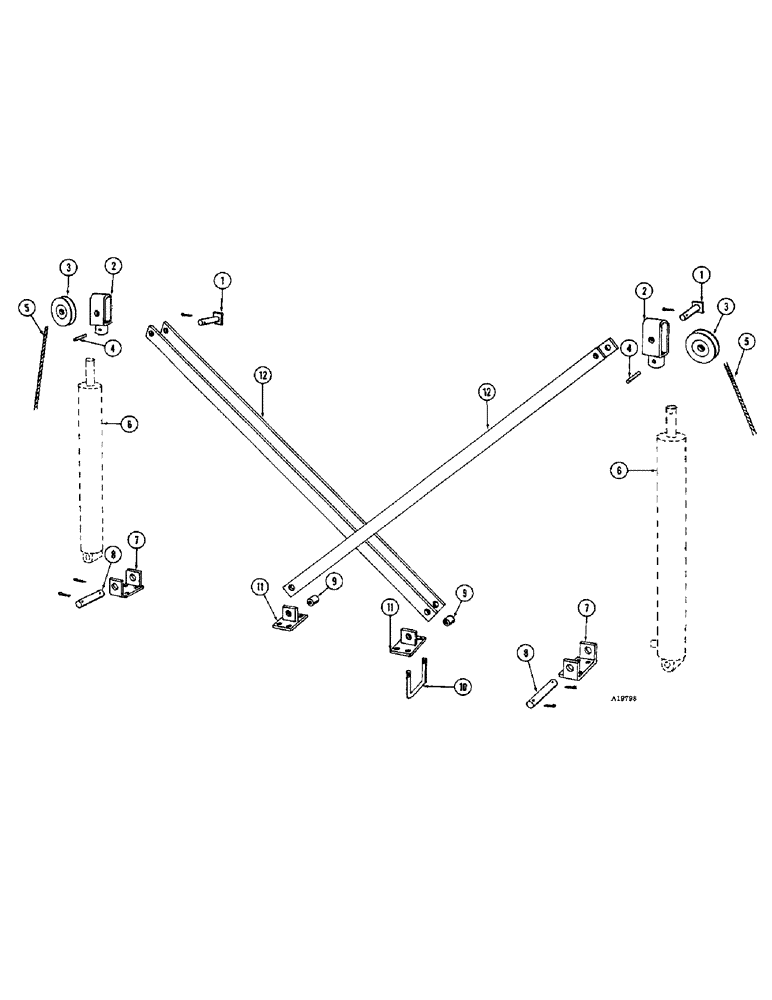

Запчасти Case IH FC-SERIES (36) - CYLINDER MOUNT AND STABILIZER BARS

1

T28955

PIN - sheave (YR. 64-)

2шт.

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

2шт.

2

T28954

BRACKET - cylinder sheave (YR. 64-)

2шт.

3

T28956

SHEAVE (YR. 64-)

2шт.

4

T28978

PIN - drive (YR. 64-)

2шт.

5

T28957

CABLE - wing lift (5/16" x 11' - 6") (YR. 64-)

2шт.

6

T28934

CYLINDER (YR. 64-)

2шт.

7

T28947

BASE - cylinder pivot (YR. 64-)

2шт.

8

T28952

PIN

- mounting, cylinder (YR. 64-)

2шт.

132-313

COTTER PIN,1/4" x 2"

PIN, Split (Cotter), 1/4" x 2"

4шт.

9

TD3877

BUSHING (YR. 64-)

2шт.

10

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 64-)

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

11

T28948

BASE - stabilizer bar (YR. 64-)

2шт.

12

T28871

BAR - stabilizer (YR. 64-)

4шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.
