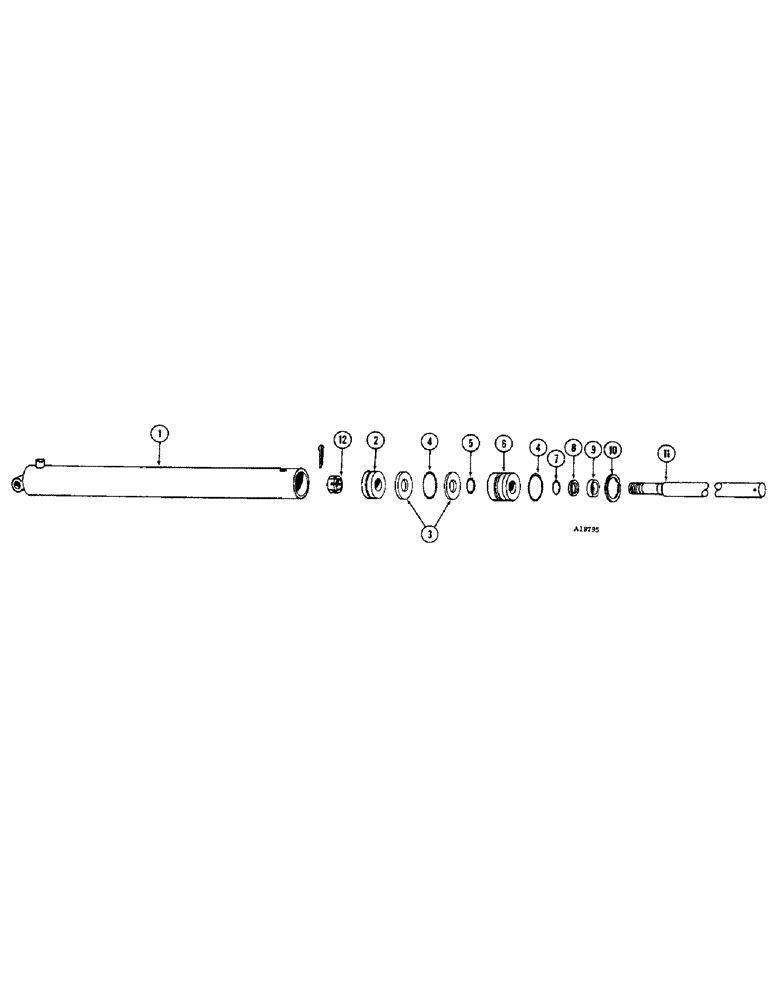

Запчасти Case IH FC-SERIES (36[A]) - HYDRAULIC WING LIFT CYLINDER

T28934

CYLINDER - cpt. (YR. 64-)

2шт.

1

T30672

BUTT AND TUBE (YR. 64-), hydraulic wing lift cylinder

1шт.

2

T30671

PISTON (YR. 64-), hydraulic wing lift cylinder

1шт.

3

T30670

WASHER - backup (YR. 64-), hydraulic wing lift cylinder

2шт.

4

T32305

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

"O" RING (YR. 64-), hydraulic wing lift cylinder

2шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING (YR. 64-), hydraulic wing lift cylinder

1шт.

6

T30674

GLAND - piston head (YR. 64-), hydraulic wing lift cylinder

1шт.

7

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

"O" RING (YR. 64-), hydraulic wing lift cylinder

1шт.

8

T30675

WASHER - backup (YR. 64-), hydraulic wing lift cylinder

1шт.

9

T30677

BRACKET

WIPER (YR. 64-), hydraulic wing lift cylinder

1шт.

10

T30676

RING - retaining (YR. 64-), hydraulic wing lift cylinder

1шт.

11

T30673

ROD - piston (YR. 64-), hydraulic wing lift cylinder

1шт.

12

T30669

LOCKNUT - 1" N.F. (YR. 64-), hydraulic wing lift cylinder

1шт.
