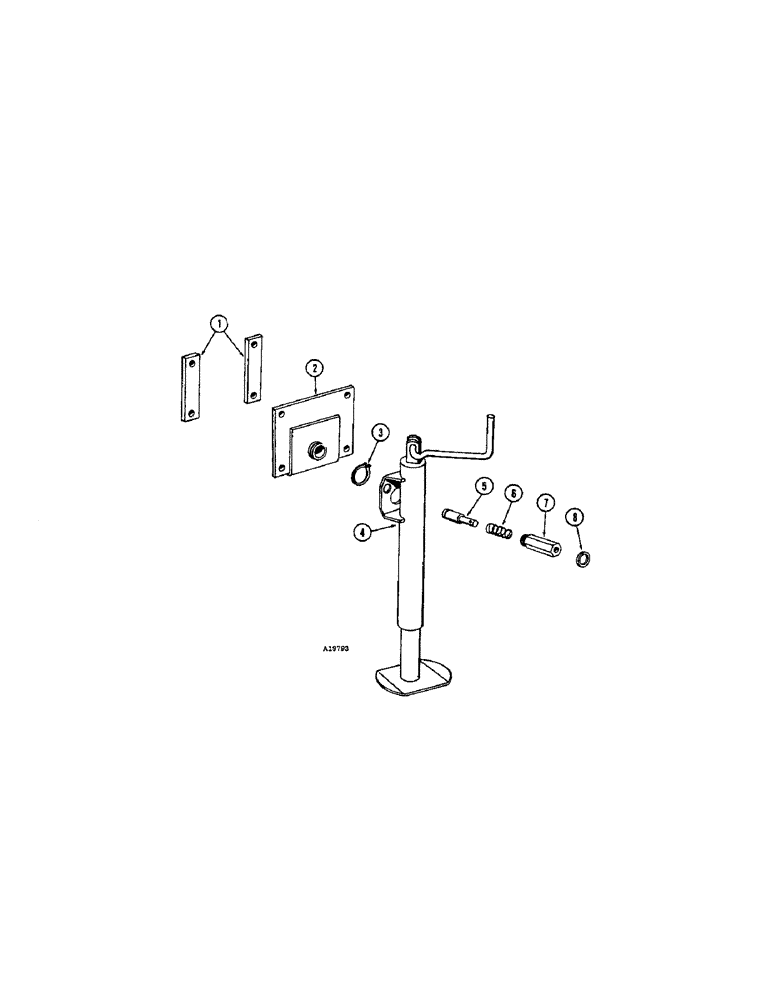

Запчасти Case IH FC-SERIES (34) - JACK

1

T28937

PLATE - mounting (YR. 64-)

2шт.

2

T28936

PLATE - jack (YR. 64-)

1шт.

113-231

BOLT - 3/8" x 6" N.C. hex. hd.

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

3

D23191

SNAP RING,#200, Ext

Ring, Snap, (YR. 64-) #200, Ext

1шт.

4

T30668

JACK - (Less bracket and rings) (YR. 64-)

1шт.

5

T38077

PLUNGER (YR. 64-)

1шт.

6

T38078

SPRING - plunger (YR. 64-)

1шт.

7

T38079

TUBE - plunger (YR. 64-)

1шт.

8

T38080

RING - pull (YR. 64-)

1шт.
