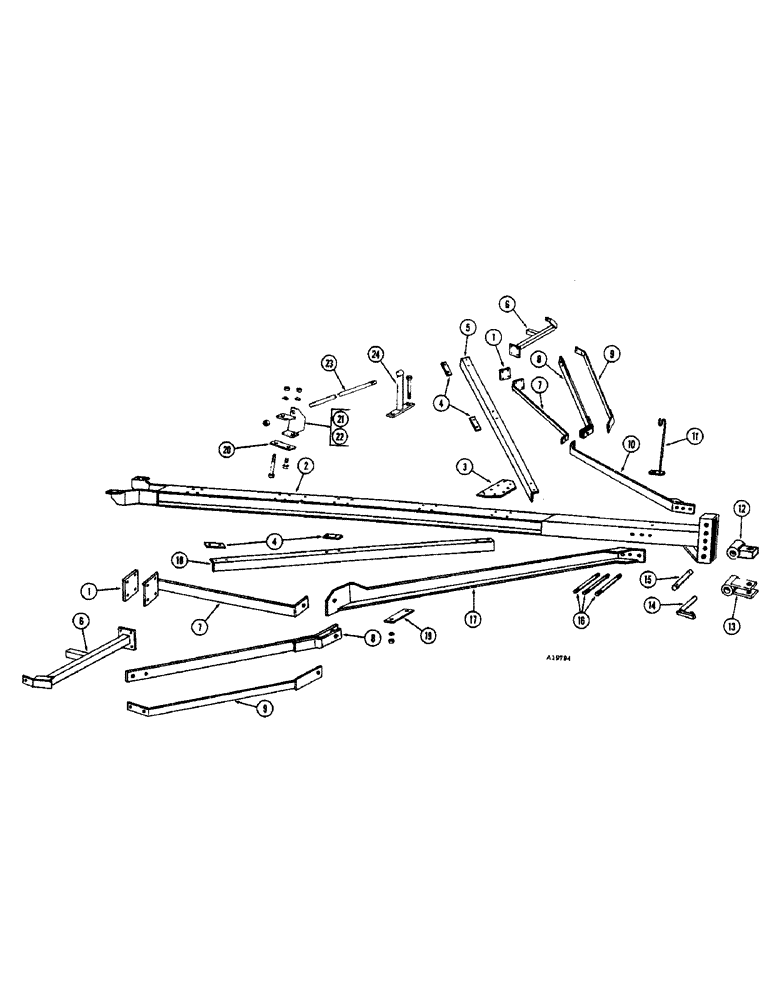

Запчасти Case IH FC-SERIES (32) - HITCH, POLE BRACE TRUSS ROD

1

T28964

PLATE - mounting (YR. 64-)

2шт.

2

T28919

POLE (YR. 64-)

1шт.

3

T28963

PLATE - pole (YR. 64-)

1шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

4

T28886

PLATE - mounting (YR. 64-)

4шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

5

T28880

BRACE - pole, L.H. (YR. 64-)

1шт.

6

T37940

BRACE - hitch (YR. 67-)

2шт.

7

T28914

BRACE - wing hitch (YR. 64-67)

2шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2" x 4" N.C. hex. hd.

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

8

T28913

BAR - wing hitch (YR. 64-)

2шт.

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

129-107

NUT,5/8"-11, G5

4шт.

113-903

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

2шт.

129-150

NUT,Jam, 1"-8, G5

- 1" N.C. hex. heavy jam

4шт.

9

T28935

BRACE - wing frame (YR. 64-)

2шт.

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

10

T28918

BRACE - wing pole, L.H. (YR. 64-)

1шт.

11

T28881

CARRIER - hose (Repl. by T35693) (YR. 64-66)

1шт.

11

T35693

CARRIER - hose (YR. 67-)

1шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

1шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

1шт.

12

T28920

CLEVIS - block (YR. 64-)

1шт.

13

T37291

CLEVIS - yoke (YR. 67-)

1шт.

14

T37941

PIN

- clevis (YR. 67-)

1шт.

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

1шт.

15

T28921

CLEVIS

PIN - clevis (YR. 64-67)

1шт.

132-314

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

2шт.

16

T28974

BRONZE BUSHING

BOLTS - stud (YR. 64-)

3шт.

131-657

LOCK NUT,3/4"-10, GB

NUT - lock, 3/4"

6шт.

17

T28917

BRACE - wing pole, R.H. (YR. 64-)

1шт.

18

T28879

BRACE - pole, R.H. (YR. 64-)

1шт.

19

T50883

BRACKET - attaching (YR. 69-), pole brace truss rod (fcaw)

1шт.

20

T28886

PLATE - mounting (YR. 69-), pole brace truss rod (fcaw)

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

Pole brace truss rod (fcaw) Hex, 1/2"-13 x 1 3/4", G5

2шт.

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

Pole brace truss rod (fcaw) Hex, 1/2"-13 x 5 1/2", G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Pole brace truss rod (FCAW) 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

Pole brace truss rod (fcaw) 1/2"-13, G5

4шт.

21

T50879

BRACKET - R.H. (Shown) (YR. 69-), pole brace truss rod (fcaw)

1шт.

22

T50880

BRACKET - L.H. (YR. 69-), pole brace truss rod (fcaw)

1шт.

23

T50882

ROD - truss (YR. 69-), pole brace truss rod (fcaw)

1шт.

131-16

LOCK NUT,3/4"-10, GB

LOCKNUT, , Pole brace truss rod (FCAW) 3/4"-10, GB

2шт.

24

T50881

GUIDE - center (YR. 69-), pole brace truss rod (fcaw)

1шт.

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

Pole brace truss rod (fcaw) Hex, 1/2"-13 x 6", G5

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Pole brace truss rod (FCAW) 1/2"

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

Pole brace truss rod (fcaw) 1/2"-13, G5

2шт.
