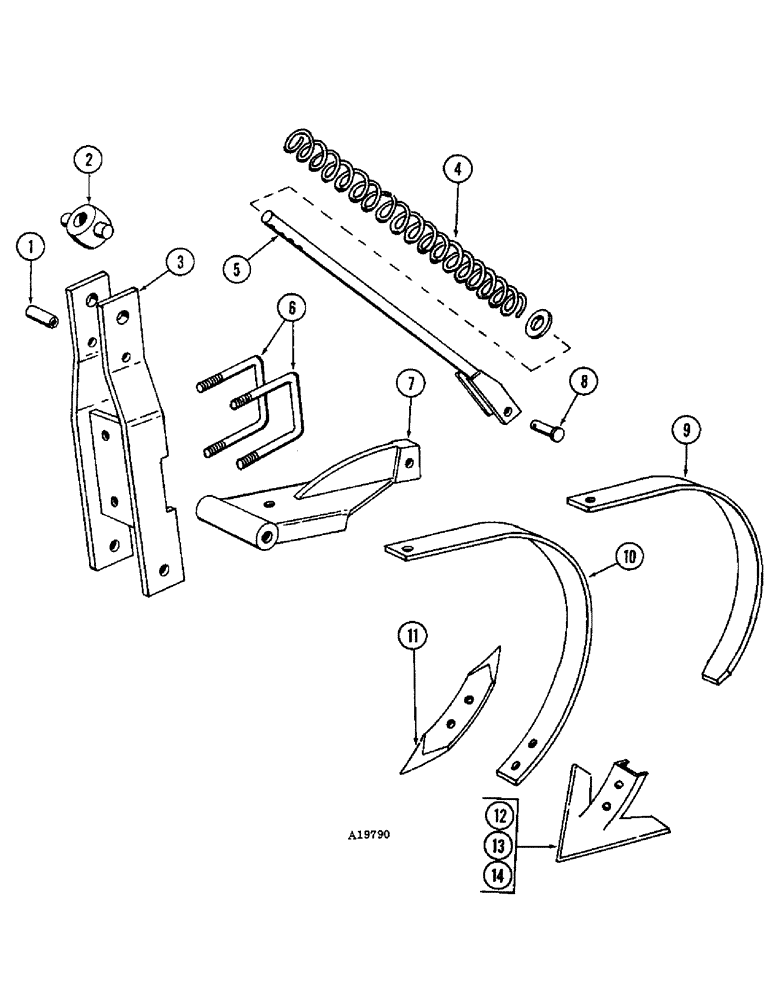

Запчасти Case IH FC-SERIES (24) - SPRING CLAMP SHANK, FC, FCW AND FCM

1

T28982

SPACER

(YR. 64-66)

1шт.

2

T1937

PIVOT

SWIVEL (YR. 64-)

1шт.

3

T28892

BRACKET

- shank (YR. 64-)

1шт.

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

- 1/4" x 2-1/2" N.C. hex. hd.

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

113-640

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex. hd. w/7/8" unthreaded body

1шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

129-107

NUT,5/8"-11, G5

1шт.

4

T28942

SPRING

- pressure rod (YR. 64-)

1шт.

4

T31803

SPRING

- pressure rod (Heavy duty) (YR. 65-)

1шт.

5

T28893

ROD

- pressure (YR. 64-66)

1шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga.

2шт.

132-312

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

6

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 64-)

2шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

T1936

BRACKET

- shank (YR. 64-66)

1шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

w/7/8" unthreaded body Hex, 1/2"-13 x 1 3/4", G5

1шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

8

T28980

CLEVIS PIN

PIN - clevis, 1/2" x 1-1/2" drilled (YR. 64-)

1шт.

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

T28894

SPRING, LEAF

LEAF - helper spring (YR. 64-)

1шт.

10

T28895

SPRING, LEAF

LEAF - main spring (YR. 64-)

1шт.

11

T26837

POINT

SHOVEL - double point (YR. 64-69)

1шт.

11

T39279

SHOVEL

- double point (YR. 69-)

1шт.

118-124

X

BOLT - plow, 3/8" x 1-1/4" P#3

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

T27354

SHOVEL

SWEEP - 6" (YR. 64-)

1шт.

118-124

X

BOLT - plow, 3/8" x 1-1/4" P#3

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

13

T27355

SHOVEL

SWEEP - 9" (YR. 64-)

1шт.

14

T32680

SHOVEL

SWEEP - 4" (YR. 66-)

1шт.

118-124

X

BOLT - plow, 3/8" x 1-1/4" P#3

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.
