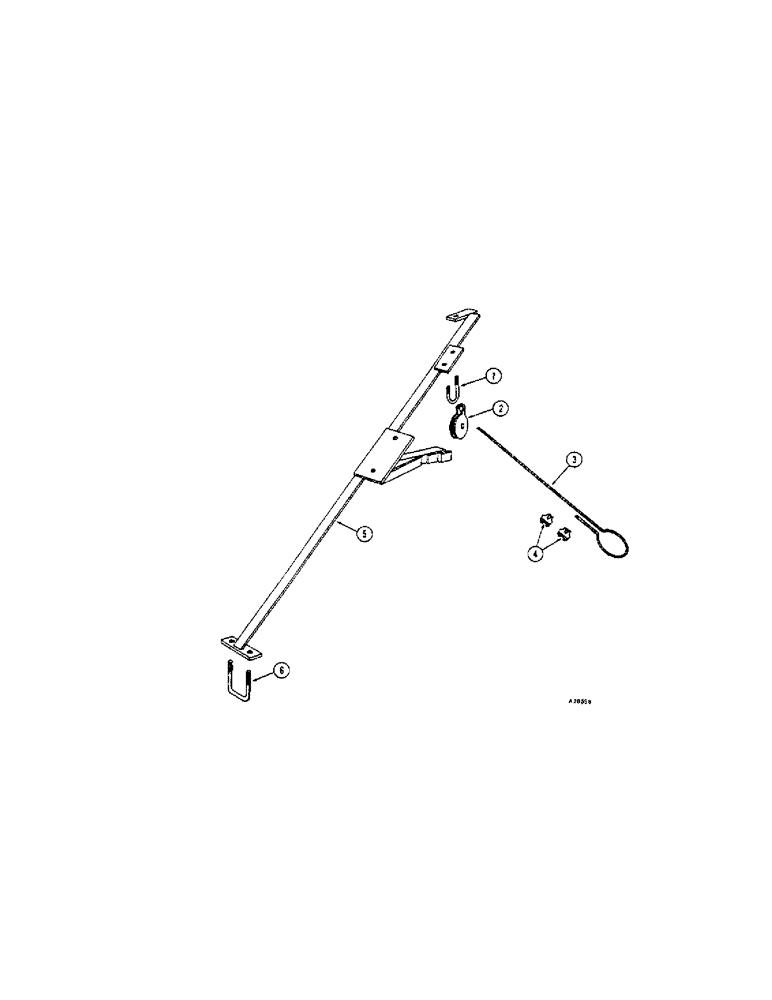

Запчасти Case IH FC-SERIES (22) - MECHANICAL WING LIFT, FC AND FCM 180

1

T35428

"U" BOLT (YR. 66-)

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

8шт.

3

T35429

PULLEY - cable (YR. 66-)

2шт.

3

T35430

CABLE (YR. 66-)

2шт.

4

T13418

CLAMP - cable (YR. 66-)

4шт.

5

T35427

LIFT ASSEMBLY (YR. 66-)

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 66-)

2шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.
