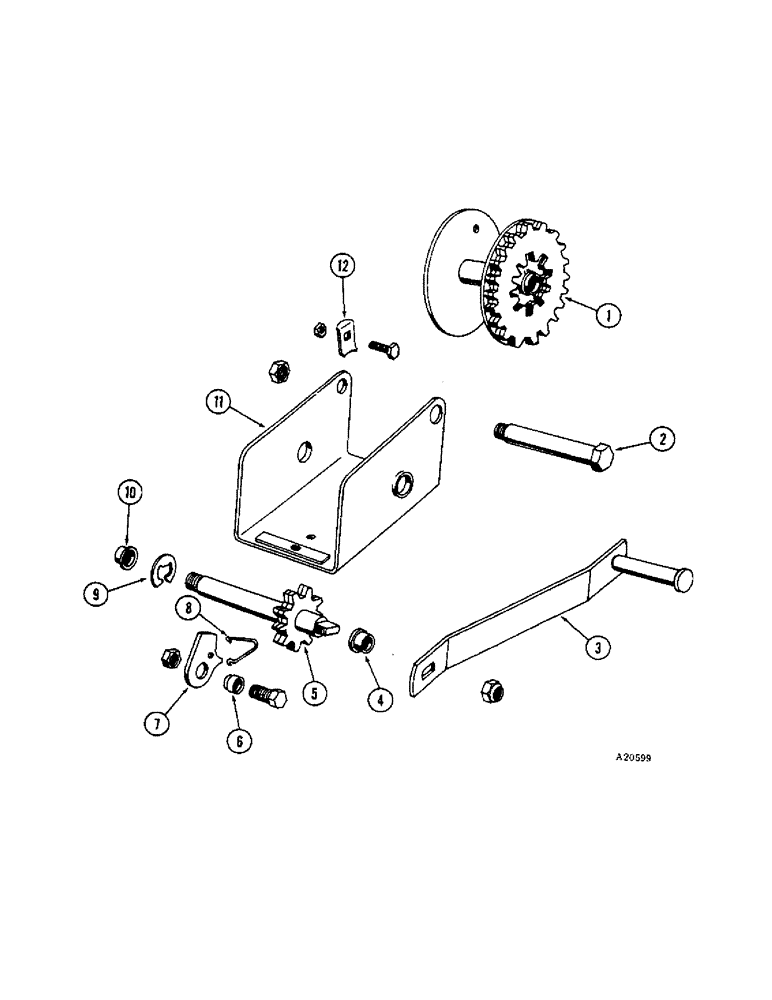

Запчасти Case IH FC-SERIES (22[A]) - WINCH, FC AND FCM 180

T33693

WINCH - complete (YR. 66-)

2шт.

1

T33976

REEL (YR. 66-), winch (fc and fcm 180)

1шт.

2

T33977

BOLT - shoulder (YR. 66-), winch (fc and fcm 180)

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Winch (fc and fcm 180) 3/8"-16, G5

1шт.

3

T33998

HANDLE (YR. 66-), winch (fc and fcm 180)

1шт.

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Esna, Winch (fc and fcm 180) 1/2"-13, GB

1шт.

4

T33978

BUSHING - drive shaft (YR. 66-), winch (fc and fcm 180)

1шт.

5

T33983

SHAFT AND GEAR - drive (YR. 66-), winch (fc and fcm 180)

1шт.

6

T33982

SPACER - ratchet (YR. 66-), winch (fc and fcm 180)

1шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Winch (fc and fcm 180) Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Winch (fc and fcm 180) 3/8"-16, G5

1шт.

7

T33979

RATCHET (YR. 66-), winch (fc and fcm 180)

1шт.

8

T33975

SPRING - ratchet (YR. 66-), winch (fc and fcm 180)

1шт.

9

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, (YR. 66-), winch (fc and fcm 180) #50, .392" Dia, E-Type

1шт.

10

T33985

BEARING (YR. 66-), winch (fc and fcm 180)

1шт.

11

T33980

BASE - winch (YR. 66-), winch (fc and fcm 180)

1шт.

12

T33986

CLAMP (YR. 66-), winch (fc and fcm 180)

1шт.

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4" x 1/2" N.C. cge., winch (fc and fcm 180)

1шт.

25-104

NUT,1/4"-20, G5

Winch (fc and fcm 180) 1/4"-20, G5

1шт.
