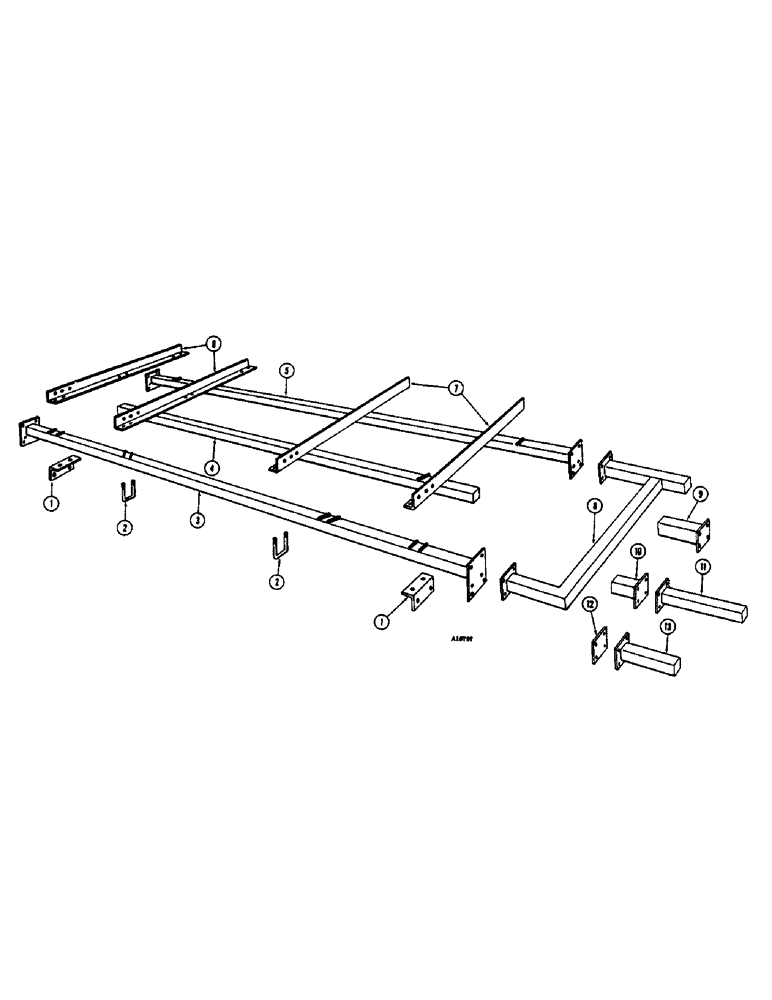

Запчасти Case IH FC-SERIES (16) - MAIN FRAME AND EXTENSION, 15-6

1

T28877

BRACKET - axle (YR. 64-)

2шт.

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- 1/2" x 4" N.C. hex. hd.

4шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

2

T28940

U-BOLT

"U" BOLT - (Repl. by T50871) (YR. 64-)

10шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

20шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

20шт.

3

T28872

FRAME - front (YR. 64-)

1шт.

4

T28873

FRAME - center (YR. 64-)

1шт.

5

T28874

FRAME - rear (YR. 64-)

1шт.

6

T28875

ANGLE - cross, R.H. (YR. 64-)

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

7

T28876

ANGLE - cross, L.H. (YR. 64-)

2шт.

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

6шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

8

T28900

FRAME - extension (YR. 64-)

2шт.

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

16шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

16шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

16шт.

9

T35636

EXTENSION - medium short, 9" (YR. 67-)

2шт.

111-513

BOLT

- 1/2" x 4-1/2" N.C. cge.

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

10

T28896

EXTENSION - short (YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

11

T28899

EXTENSION - long 20" (YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

12

T28897

PLATE - mounting, extension (YR. 64-)

2шт.

13

T28898

EXTENSION

- medium (YR. 64-)

2шт.

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

8шт.

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.
