Запчасти Case IH AV-144 (L-29) - UNIVERSAL MOUNTING FRAME, LIFT LINK AND PIPE

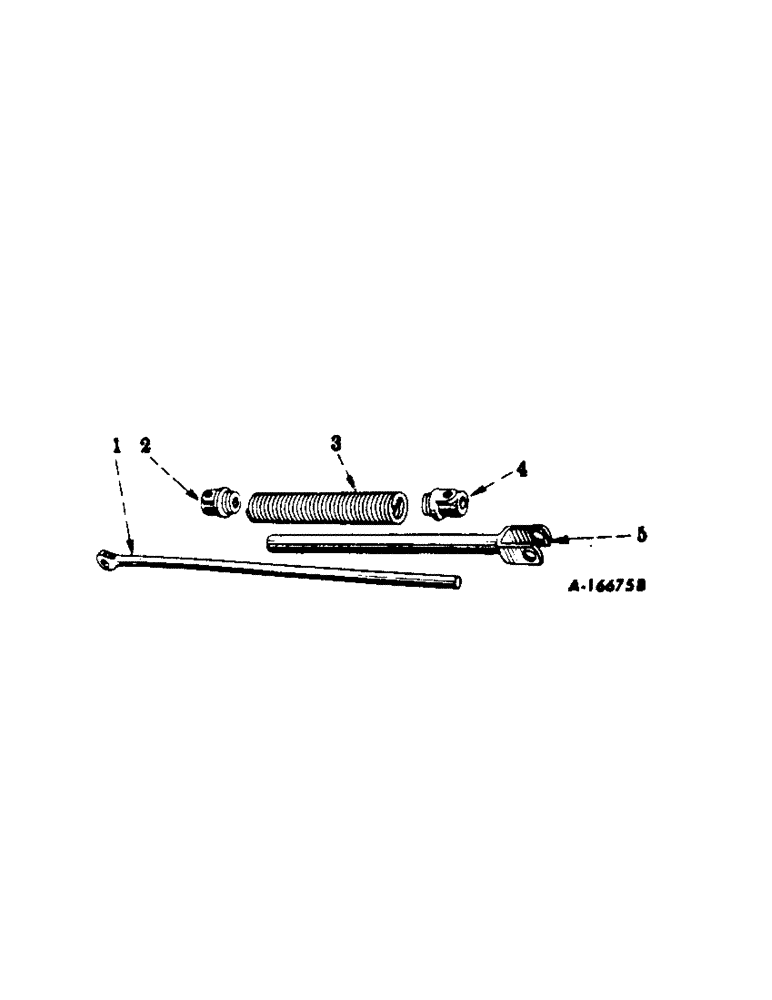

Схема запчастей Case IH AV-144 - (L-29) - UNIVERSAL MOUNTING FRAME, LIFT LINK AND PIPE
5
2
1
4
3

Артикул

Название

Примечание

Количество

1

PO28371

ROD

LINK, left lifting, offset

1шт.

1

PO28372

ROD

LINK, right lifting, straight

1шт.

2

514609R91

PLUG

W/NUT AND SET SCREW, lift link spring

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

20900R1

SET SCREW

1/2 x 1 znp sq/hd c/pt set

1шт.

3

PO27501

SPRING

lifting lin, 1-7/16 in. OD, 9 in. long, 46 coils

1шт.

4

514608R91

PLUG

W/NUT AND SET SCREW, lift link spring

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

20900R1

SET SCREW

1/2 x 1 znp sq/hd c/pt set

1шт.

5

PO28377

YOKE

PIPE, lifting link

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

22068R1

HEADED PIN,5/8" x 1 13/16"

PIN, 5/8 x 1.812 hd type 1

1шт.

Выбрано товаров: 12
