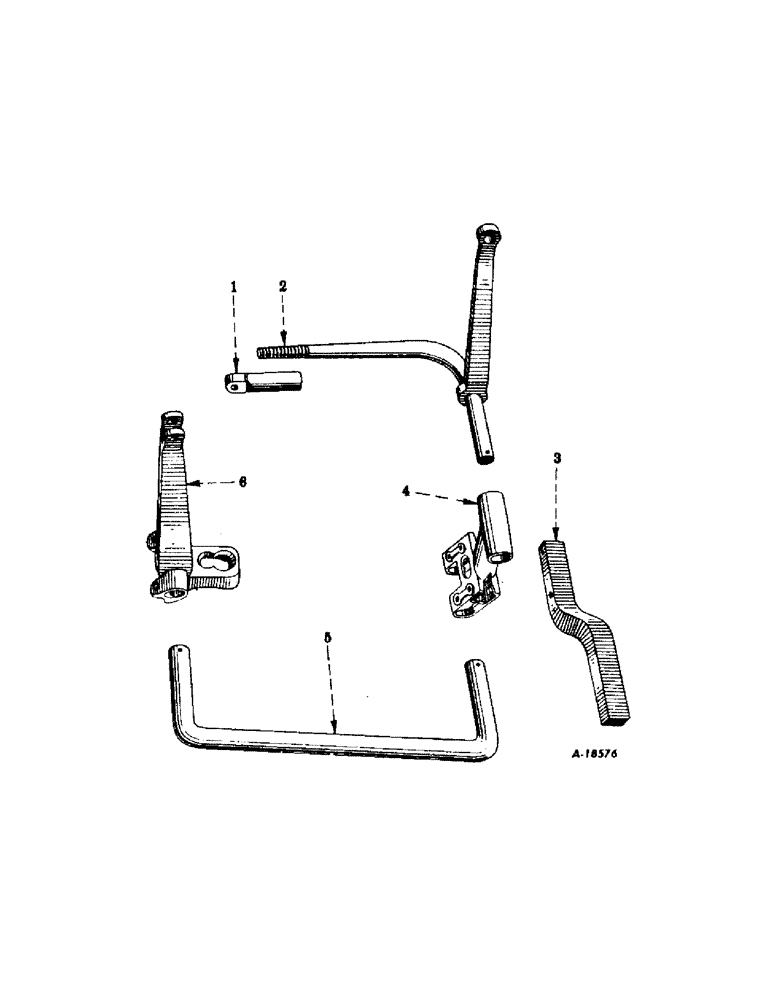

Запчасти Case IH AV-144 (L-28[A]) - UNIVERSAL MOUNTING FRAME, LEFT FRONT FRAME

1

516744R1

ADJUSTING, upper parallel link, 1 in. thd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

512683R1

PIN

5/8 x 2-7/16 in. pointed

1шт.

2

516771R11

ARM

LINK ASSEMBLY, parallel left, 1 in. thd

1шт.

516773R1

NUT

1 in. jam, 7/8 in. blank tapped 1 in.

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

1шт.

3

512437R1

BAR

left frame, 1-1/2 in. sq

1шт.

4

PO3100B

ARM

BEARING, gang beam

1шт.

18941R1

BOLT,1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 sq-hd mach type 1

2шт.

18942R1

BOLT,1/2" - 13 x 3", Gr 2

1/2 x 3 sq-hd mach type 1

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

512429R2

ROD

BEAM, gang, 1-3/8 in. dia, heat-treated

1шт.

19471R1

PIN, SPLIT (COTTER),1/4" x 1 3/4"

1шт.

608085R1

WASHER

1.406 x 2.000 x .054

1шт.

6

512797R3

CLAMP

tool bar and gang beam

1шт.

18798R1

BOLT,Hex, 7/16"-14 x 2", G2

7/16 x 2 type 1

1шт.
