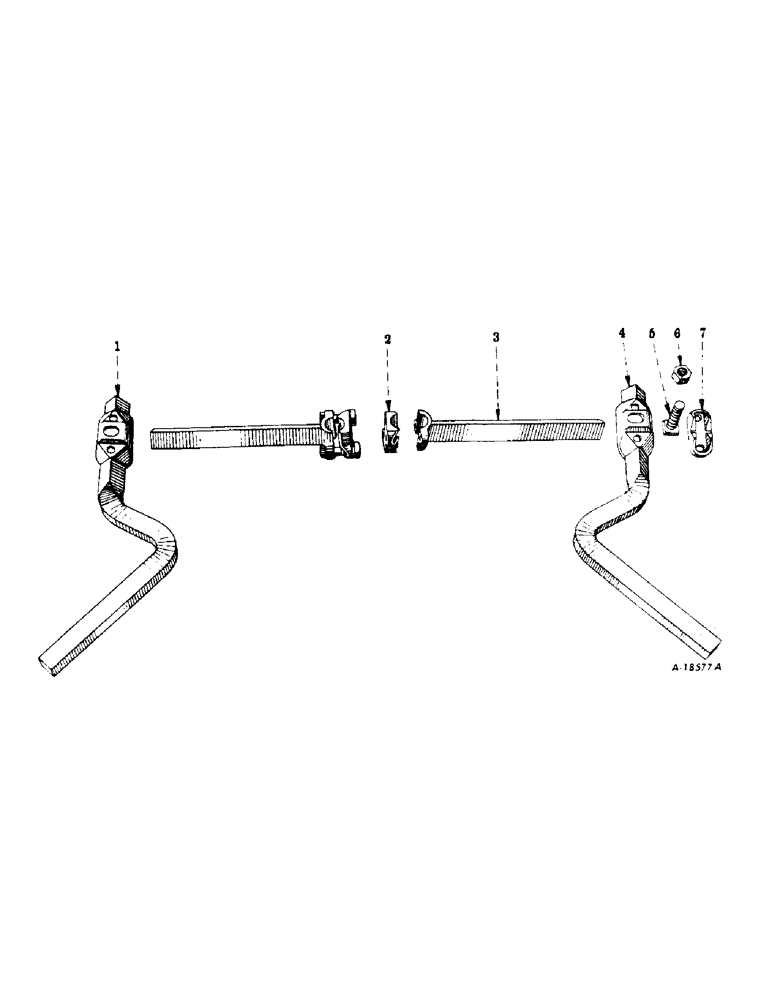

Запчасти Case IH AV-144 (L-35) - TOOL BARS, FRONT SECTION

1

512439R1

BAR

TOOL BAR, left, 1-3/8 in. sq

1шт.

2

510918R1

CLAMP

CAP, tool bar extension

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 sq-hd mach type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

3

30791BA

EXTENSION

tool bar, 1-3/8 in. sq x 14-1/8 in. long

1шт.

4

512438R1

TOOL BAR, right, 1-3/8 in. sq

1шт.

5

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

7/8 x 2-3/4 znd sq-hd mach

2шт.

6

30537B

NUT

7/8 in. conical

2шт.

7

547750R1

CLAMP

tool bar extension

1шт.

18960R1

BOLT,5/8" - 11 x 4", Gr 2

5/8 x 4 sq-hd mach type 1

2шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 type 5

2шт.
