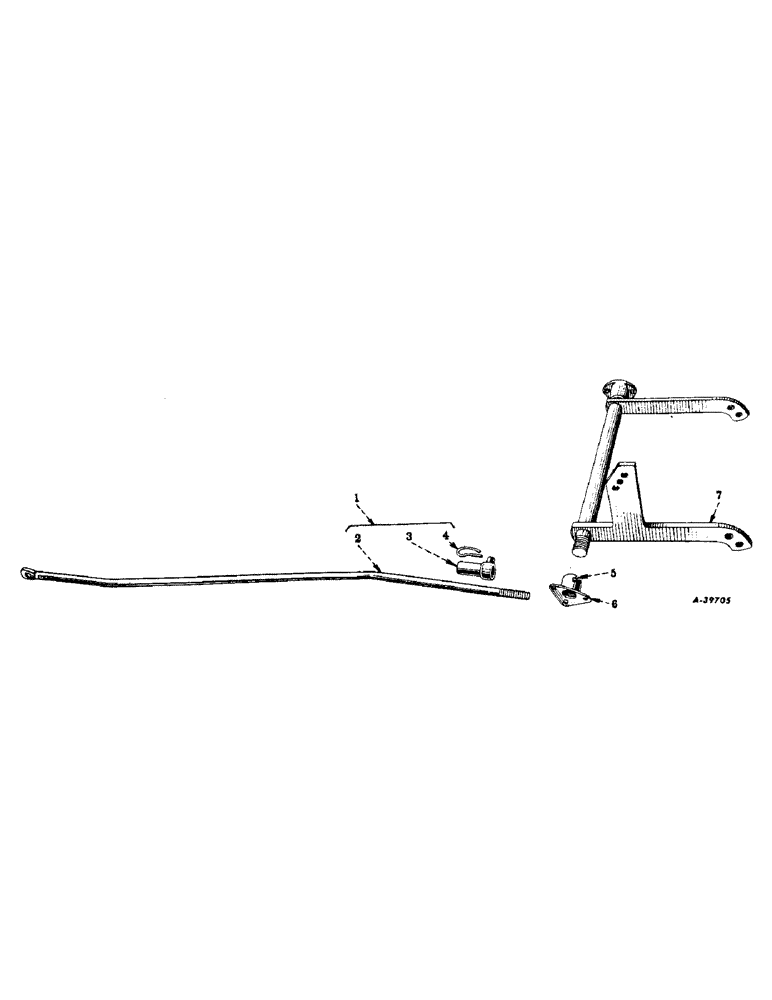

Запчасти Case IH AV-144 (L-33) - RIGID ROCKSHAFT WITH LIFT LINK

1

515226R91

ROCKSHAFT

LINK ASSEMBLY, lifting

1шт.

2

515059R1

ROD

LINK, lifting

1шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4 jam type 5

1шт.

3

515060R91

END

SWIVEL, lifting link

1шт.

4

PO18499

COTTER PIN

quick-attachable cotter

1шт.

608701R1

WASHER

.656 x 1.250 x .054

1шт.

5

109455

LUBE NIPPLE,5/16" x .56 lg, Drive

FITTING, 5/16 in. drive type straight lubrication

1шт.

6

512447R21

BEARING ASSY

W/FITTING ROCKSHAFT

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 crg type 1

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

619856R1

WASHER

.406 x 1.000 x .056

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

7

512453R93

ROCKSHAFT

ASSY, raising

1шт.

1431BX

COLLAR CLAMP

COLLAR W/SET SCREW, lifting link

1шт.

21689R1

SCREW

1/2 x 3/4 znp sq/hd c/pt set

1шт.
