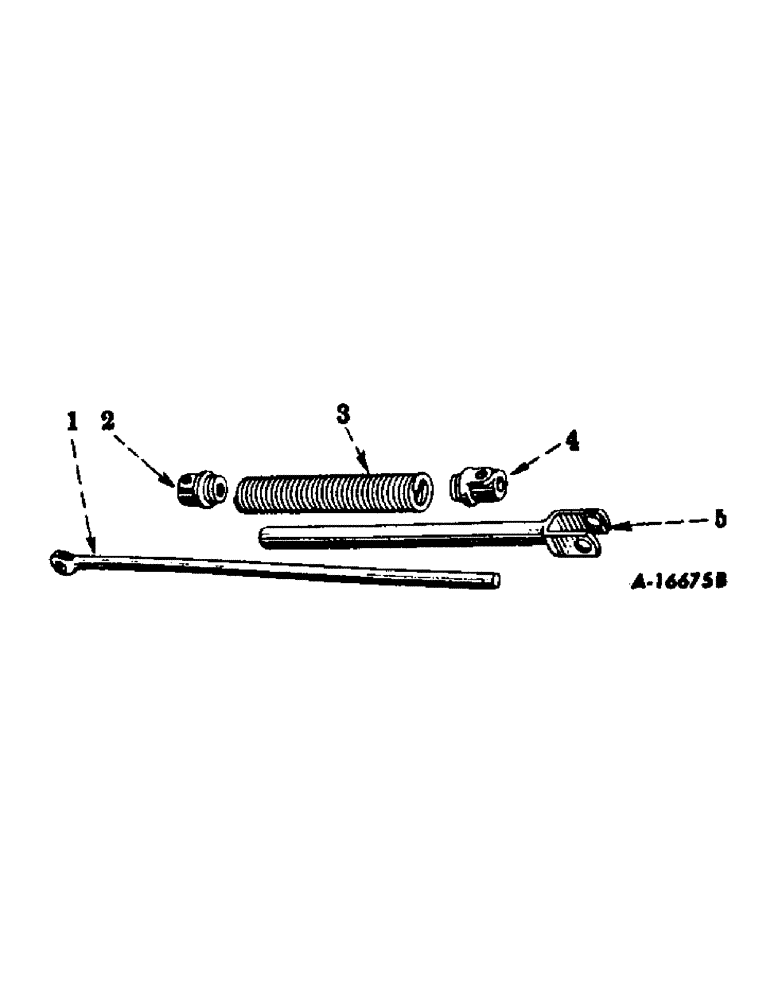

Запчасти Case IH A-144 (L-05) - UNIVERSAL MOUNTING FRAME, LIFT LINK AND PIPE

1

PO28371

ROD

LINK, left lifting, offset

1шт.

1

PO28372

ROD

LINK, righ lifting, straight

1шт.

2

514609R91

PLUG

W/NUT AND SET SCREW, lift link spring

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

20900R1

SET SCREW

1/2 x 1 znp sq/hd c/pt set

1шт.

3

PO27501

SPRING

lifting link, 1-7/16 in. OD, 9 in. long, 46 coils

1шт.

4

514608R91

PLUG

W/NUT AND SET SCREW, lift link spring

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 jam type 5

1шт.

20900R1

SET SCREW

1/2 x 1 znp sq/hd c/pt set

1шт.

5

PO28377

YOKE

PIPE, lifting link

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22068R1

HEADED PIN,5/8" x 1 13/16"

PIN, 5/8 x 1.812 hd type 1

1шт.
