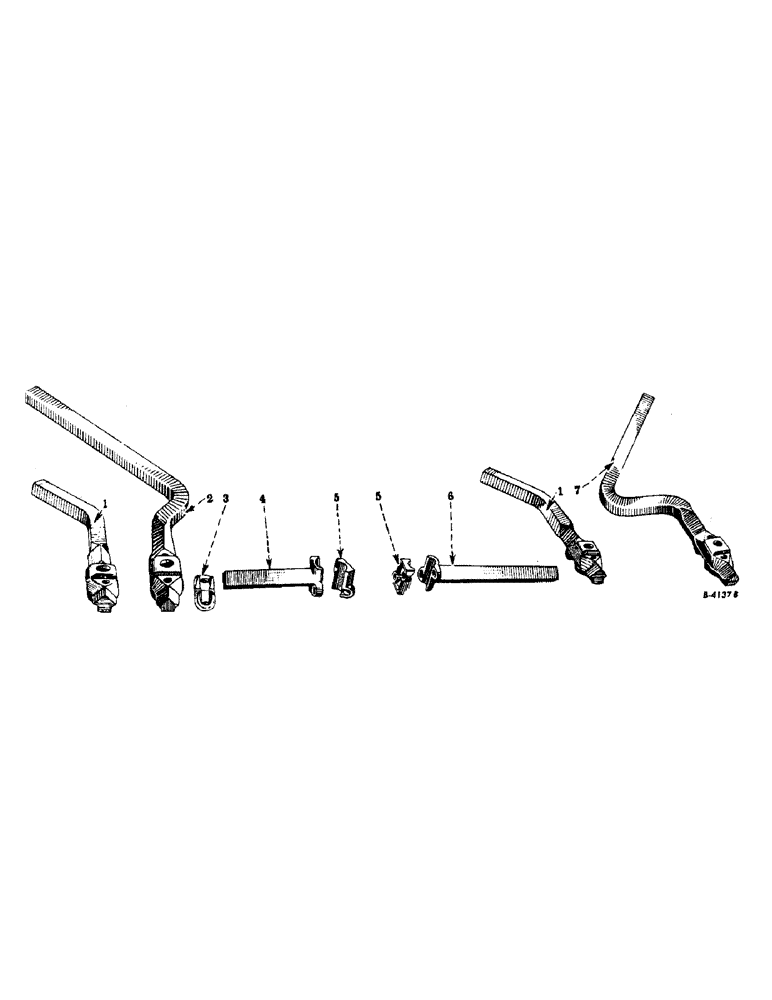

Запчасти Case IH A-144 (L-18) - TOOL BARS AND EXTENSIONS, FRONT SECTION

1

512419R1

BAR

TOOL BAR, for four-sweep

1шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

7/8 x 2-3/4 sq-hd mach type 1

1шт.

30537B

NUT

7/8 in. conical hex

1шт.

2

512420R1

BAR

TOOL BAR, right, for six-shovel

1шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

7/8 x 2-3/4 sq-hd mach type 1

1шт.

30537B

NUT

7/8 in. conical hex

1шт.

3

547750R1

CLAMP

tool bar extension front

1шт.

18960R1

BOLT,5/8" - 11 x 4", Gr 2

5/8 x 4 sq-hd mach type 1

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

4

30790BA

EXTENSION

tool bar right, 1-3/8 in. sq 8-5/8 in. long

1шт.

5

510918R1

CLAMP

CAP, tool bar extension

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 sq-hd mach type 1

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

6

30927BA

EXTENSION, tool bar left, 1-3/8 in. sq., 17-1/8 in. long, heat- treated

1шт.

6

30791BA

EXTENSION

tool bar right, 1-3/8 in. sq. 14-1/8 in. long

1шт.

7

512421R1

BAR

TOOL BAR, left, for six-shovel

1шт.

18984R1

BOLT,7/8" - 9 x 2 3/4", Gr 2

7/8 x 2-3/4 sq-hd mach type 1

1шт.

30537B

NUT

7/8 in. conical hex

1шт.
