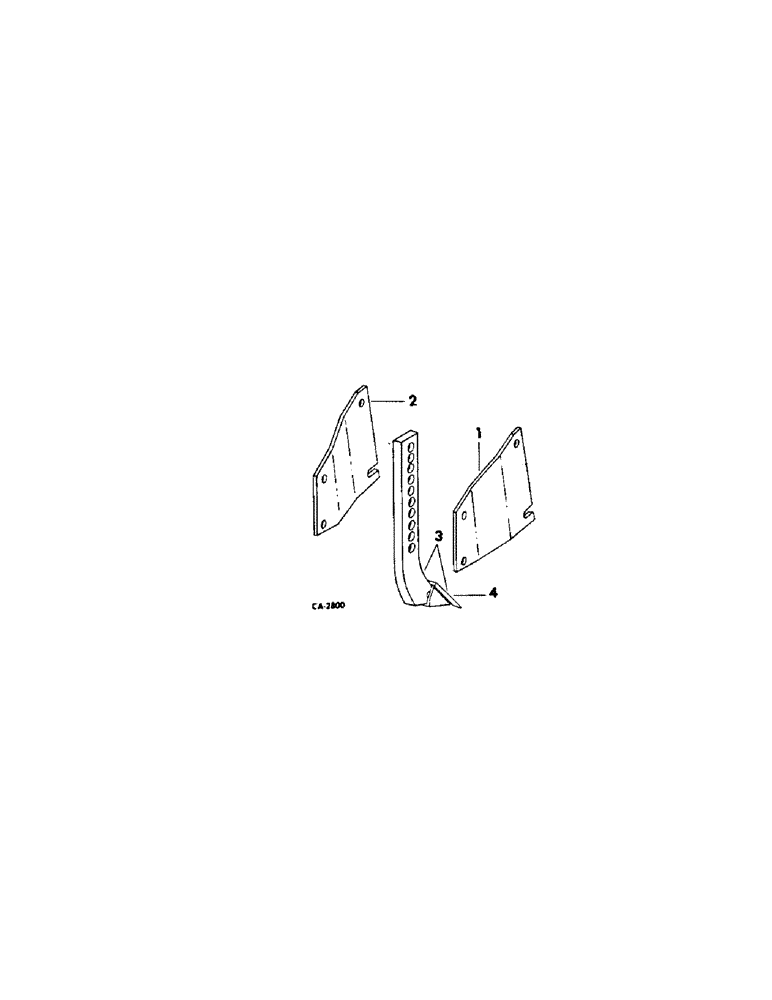

Запчасти Case IH 92 (D-05[C]) - SUBSOILER ATTACHMENT

1

488994R1

PLATE, tooth attaching right

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 c-z hex.

3шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 c-z hex-hd cap

2шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 c-z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

2

488993R1

PLATE, tooth attaching left

1шт.

3

488995R91

STANDARD ASSY, tooth & point

1шт.

4

469646R91

POINT

TOOTH AND POINT

1шт.
