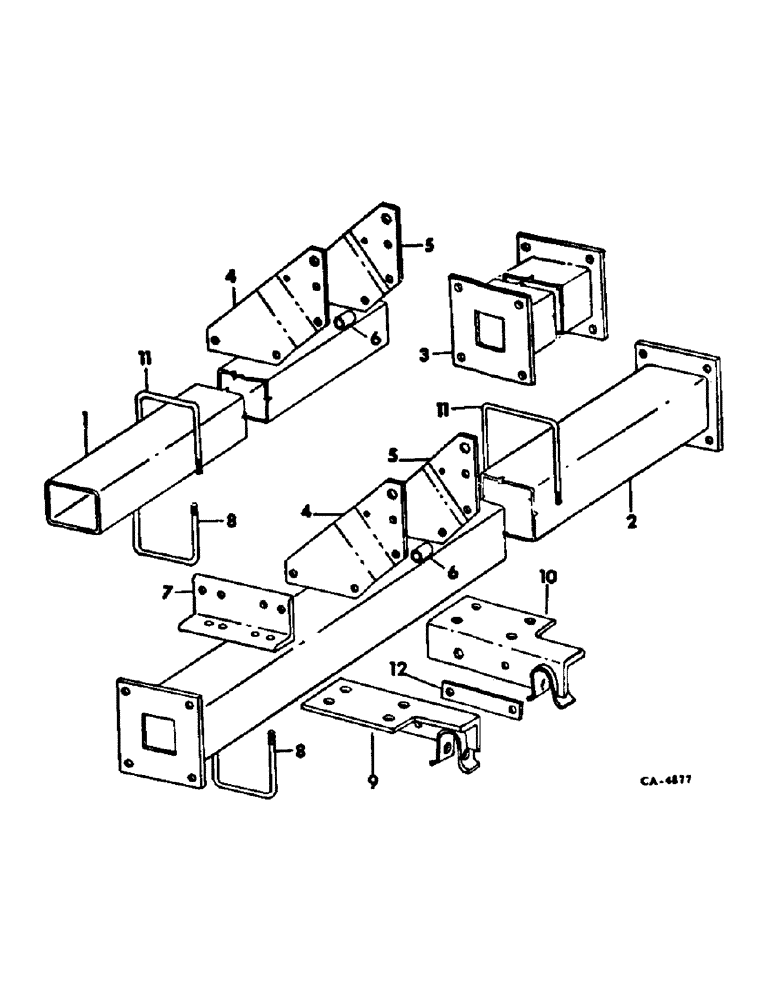

Запчасти Case IH 92 (D-03) - TOOLBAR FRAME, BEAMS AND ANGLES
№
Артикул
Название
Примечание
Количество
1
541610R2
TUBE, toolbar 160 in., 4 row
1шт.
1
541609R2
TUBE
toolbar 190 in., 5 row
1шт.
2
541975R3
TUBE ASSY, toolbar 220 in., 6 row
1шт.
2
541613R3
TUBE ASSY, toolbar 260 in., 7 row
1шт.
2
100487C3
TUBE ASSY, toolbar 300 in., 8 and 9 row 300 mm Length
1шт.
3
541650R3
TUBE ASSY, toolbar extension, 9 row
1шт.
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
Hex, 3/4"-10 x 2-1/2", G5
4шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
4
541633R2
SUPPORT
MAST, RH
1шт.
5
541632R2
MAST ASSEMBLY
MAST, LH
1шт.
6
462425R1
SPACER
mast
2шт.
271780
BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 5
SCREW, 3/4-10 x 4-1/4 znd hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
7
61684C1
ANGLE, mast, 4 and 5 row
2шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
1шт.
27426R1
BOLT,Short NK, 3/4" -10 x 2 1/4", G5
3/4-10 x 2-1/4 c-z sq-nk crg
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
7
61685C1
ANGLE, mast, 6, 7, 8 and 9 row
2шт.
87403
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
1шт.
27426R1
BOLT,Short NK, 3/4" -10 x 2 1/4", G5
3/4-10 x 2-1/4 c-z sq-nk crg
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
8
493468R1
BOLT,7/8" - 9 x 6 1/2"
U-BOLT, 4 and 5 row
1шт.
23831R1
NUT,7/8"-9, G8
7/8-9 znd hex. type 8
4шт.
8
541636R1
BOLT,U, 7/8" - 9 x 7.64"
U-BOLT, 6, 7, 8 and 9 row
1шт.
23831R1
NUT,7/8"-9, G8
7, 8, 9 znd hex. type 8
4шт.
9
61687C1
SUPPORT ASSY, lower link RH
1шт.
10
61686C1
SUPPORT ASSY, lower link LH
1шт.
11
541645R1
U-BOLT,U, 1" - 8 x 7.14"
4 and 5 row
4шт.
21929R1
NUT,1"-8, G8
1/8 znd hex.
1шт.
11
541742R1
BOLT,U, 1" - 8 x 7.84"
U-BOLT, 6, 7, 8 and 9 row
4шт.
21929R1
NUT,1"-8, G8
1/8 znd hex.
8шт.
21162R1
WASHER
1-1/32 x 2 x 7 ga znd
4шт.
12
541644R1
BAR
CLIP, 5 x 7 bar idler link, 4 and 5 row
4шт.
Выбрано товаров: 37
